Product Detailed Parameters
- Description：DATAMATE 2-ROW MIX-TEK MALE VERT
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：-
- Number of Positions：12 (8 + 4 Power)
- Number of Rows：-
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview

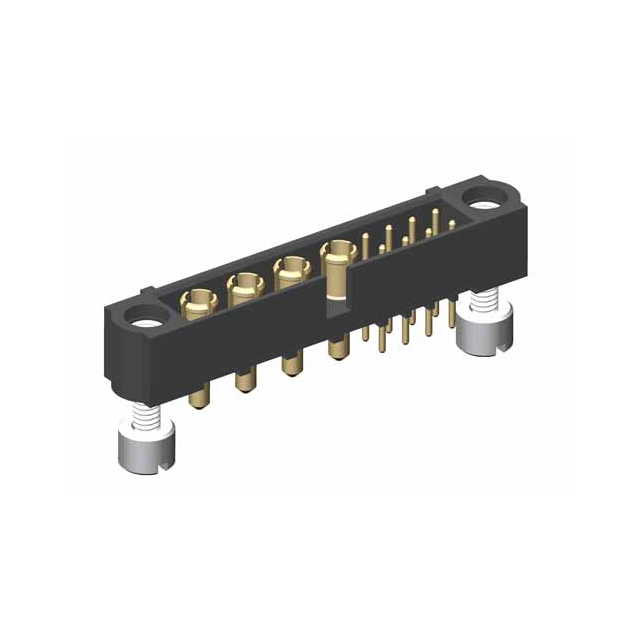

The M80-5T10805M3-04-331-00-000 is a male header connector from the Harwin Datamate Mix-Tek series. It features a 12-position configuration arranged in two rows, specifically designed with 8 signal pins and 2 power pins per row. The component utilizes a 2.00mm (0.079 inch) pitch and employs a through-hole termination method for PCB mounting. It incorporates a threaded jack screw locking mechanism to ensure secure mating. The contacts are gold-plated, and the housing is constructed from black PPS material.
Feature Summary
- Combines signal and power circuits within a single compact rectangular housing
- Utilizes a threaded jack screw system for robust mechanical retention
- Features gold-plated contacts for reliable electrical conductivity
- Designed for vertical through-hole board-to-cable interconnection
Applications
- Industrial control systems requiring mixed signal and power connections
- Test and measurement equipment interfaces
- Medical device internal wiring harnesses
- Automotive electronics modules
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to confirm pinout configurations and locking hardware variations. Ensure compatibility with mating receptacles from the same Datamate Mix-Tek family. Confirm that the required cable gauge matches the terminal specifications for proper crimping or termination processes during assembly.
Selection Notes
Select this component when a mixed-signal solution is required in a limited space. The Mix-Tek series allows for flexible arrangement of signal and power contacts. Consider the threaded locking mechanism if vibration resistance is critical. Verify that the through-hole footprint aligns with the target PCB design constraints and thermal requirements.
Part Context
This part belongs to the Datamate Mix-Tek line, which integrates different contact types into one connector body. It complements other M80-series components by offering a specialized hybrid configuration. The series is known for high reliability in harsh environments, supporting various termination styles and locking options for diverse industrial applications.
Replacement Considerations
Direct substitutes must match the 12-pin Mix-Tek configuration and threaded locking style. Check Harwin's cross-reference guides for equivalent headers with identical pin counts and spacing. Ensure any alternative maintains the same voltage and current ratings for safe operation.
