Product Detailed Parameters
- Description：CONN HEADER VERT 12POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：12 (8 + 4 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

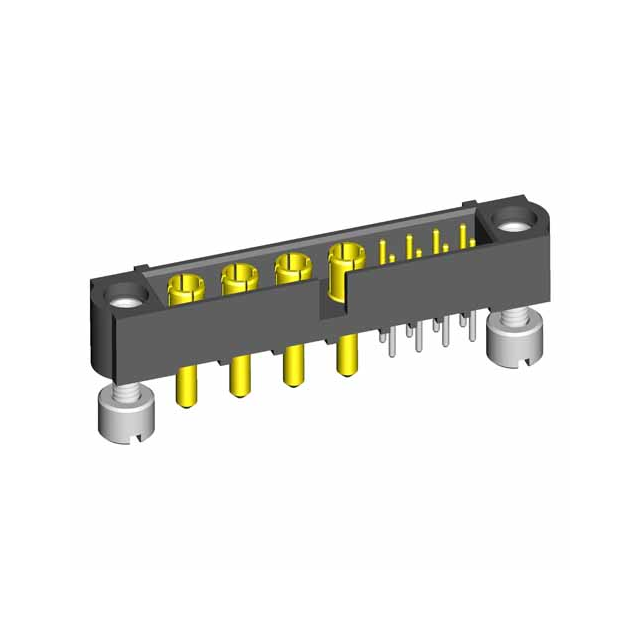

The M80-5T10805M3-04-332-00-000 is a board connector from the Harwin Datamate J-Tek series. It features a male header configuration with 12 contacts arranged in two rows (8 signal and 4 power). The connector utilizes a 2.00mm pitch and employs through-hole termination for secure PCB mounting. Constructed with a black insulator, it supports mixed signal and power applications within compact electronic assemblies.
Feature Summary
- Mixed contact design integrating signal and power pins
- Robust locking mechanism for secure mating
- Through-hole termination for reliable board attachment
Applications
- Industrial control systems requiring mixed signal/power connections
- Medical instrumentation with space-constrained layouts
- Telecommunications equipment needing high-reliability interconnects
Procurement Notes
Verify the specific pin count and row arrangement against your schematic requirements. Confirm that the through-hole termination method aligns with your PCB fabrication capabilities. Ensure the operating temperature range meets your environmental specifications before finalizing the component selection.
Selection Notes
Select this part when a mixed-signal solution is required in a small form factor. The 2.00mm pitch allows for dense packing while maintaining adequate spacing. Consider the locking feature if vibration resistance is critical for the application environment.
Part Context
This component belongs to the Datamate J-Tek family, known for its high reliability and durability. The series offers various configurations to support diverse electronic needs. Its design emphasizes robust mechanical performance alongside electrical stability in demanding conditions.
Replacement Considerations
Direct substitutes within the same series must maintain the 2.00mm pitch and mixed-contact layout. Verify that any alternative part number preserves the locking mechanism and through-hole termination style to ensure mechanical compatibility.
