Product Detailed Parameters
- Description：8+6 POS. MALE SIGNAL+POWER VERTI
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：14 (8 + 6 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Jackscrews, Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview

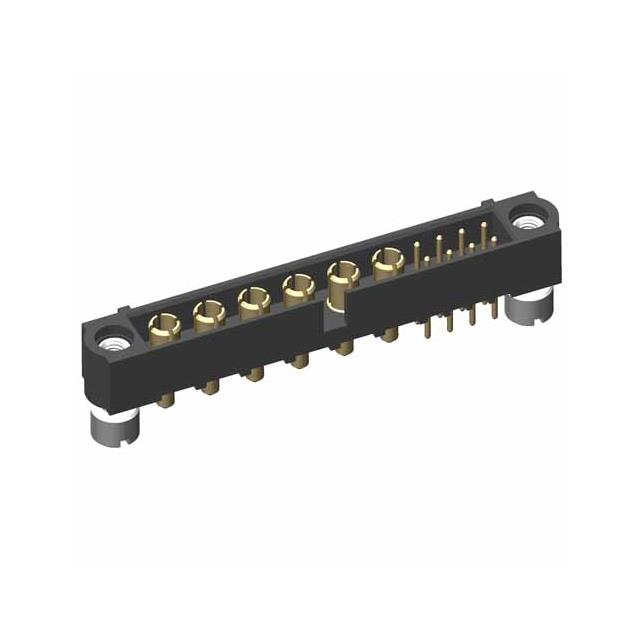

The M80-5T10805M3-06-331-00-000 is a 2-row male header connector from the Harwin Datamate Mix-Tek series. It features a 2.00mm pitch and is designed for vertical PCB mounting with solder termination. The connector includes an integrated backshell and utilizes screw lock fastening for secure mating. Contacts are gold-plated to ensure reliable signal transmission in demanding environments.
Feature Summary
- Datamate Mix-Tek series compatibility
- Integrated backshell design
- Screw lock fastening mechanism
Applications
- Industrial control systems
- Test and measurement equipment
- Automotive electronics
Procurement Notes
Verify the specific suffix codes against the official datasheet to confirm mechanical dimensions and locking style. Ensure compatibility with mating sockets regarding keying options. Confirm that the integrated backshell meets the required cable entry specifications for the intended assembly.
Selection Notes
Select this component when a robust, high-reliability connection is required with integrated strain relief. The Mix-Tek series offers mixed contact sizes for combined signal and power applications. Verify panel cutout requirements and ensure sufficient clearance for the screw lock operation during installation.
Part Context
This part belongs to the Datamate Mix-Tek family, which combines different contact sizes within a single housing. It is manufactured by Harwin Inc., a provider of high-performance interconnect solutions. The series is known for its durability and suitability for harsh operating conditions.
Replacement Considerations
Compatible mating sockets include M80-4C10805F1 variants. Ensure the replacement maintains the same 2.00mm pitch and screw lock interface. Verify that any substitute part supports the required current rating and environmental specifications.
