Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：10 (8 + 2 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

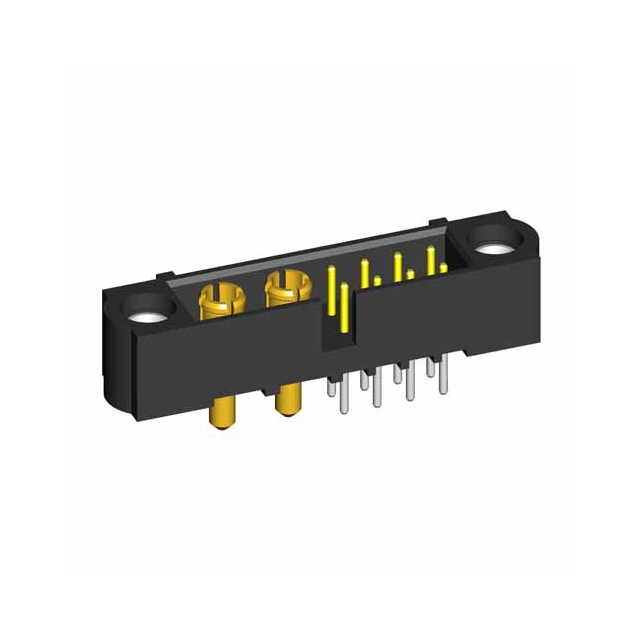

The M80-5T10822M1-02-331-00-000 is a Datamate J-Tek power-to-board connector manufactured by Harwin Inc. It features a male pin configuration with 10 positions arranged in a single row. The component utilizes a vertical through-hole mounting style with solder terminals for secure PCB attachment. Designed for the Datamate series, it employs a 2mm pitch and includes hex socket jackscrews for locking. The housing is constructed from black Polyphenylene Sulfide (PPS), ensuring durability in industrial environments.
Feature Summary
- Vertical through-board mounting design for direct PCB integration
- Male pin contact configuration with gold plating for reliable conductivity
- Integrated hex socket jackscrew system for positive mechanical locking
- Polyphenylene Sulfide (PPS) insulator material for thermal stability
Applications
- Industrial control panel interconnections
- Power distribution within electronic enclosures
- Machine tool signal and power routing
- Automotive electronics harness connections
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to confirm jack screw type and tail length. Ensure compatibility with mating female sockets from the same Datamate J-Tek series. Check for RoHS compliance status if required by project specifications. Confirm lead times as availability may vary by region.
Selection Notes
Select this part when vertical orientation and robust mechanical locking are required for power applications. The 10-position count suits moderate current distribution needs. Verify that the 2mm pitch aligns with existing board layout constraints. Consider the jackscrew requirement for vibration-prone environments compared to standard snap-fit connectors.
Part Context
This component belongs to the Harwin Datamate J-Tek family, specialized for high-reliability power and signal transmission. The M80 prefix indicates a specific header variant within the broader connector ecosystem. It complements matching female housings and cables to form complete interconnect solutions for demanding operational conditions.
Replacement Considerations
Direct substitutes include other Harwin Datamate J-Tek headers with identical 10-position male configurations and vertical through-hole termination. Ensure any replacement maintains the 2mm pitch and compatible jackscrew interface for mechanical interchangeability.
