Product Detailed Parameters
- Description：DATAMATE 2-ROW MIX-TEK MALE VERT
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：-
- Number of Positions：10 (8 + 2 Power)
- Number of Rows：-
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview

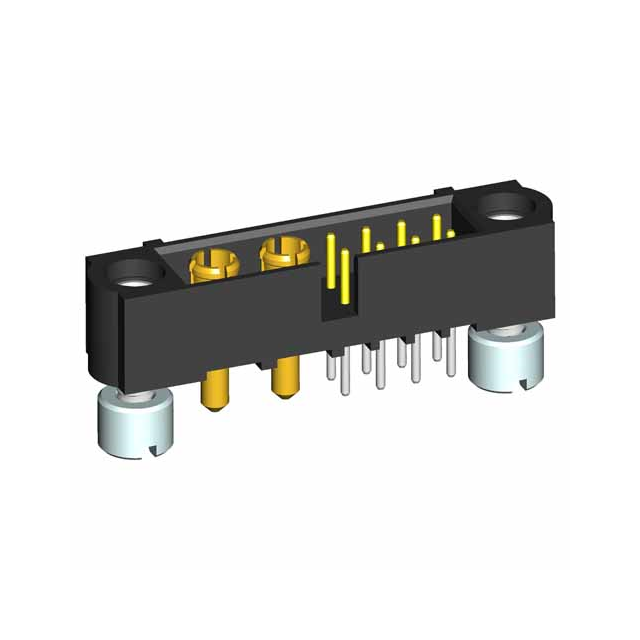

The Harwin M80-5T10822M2-02-331-00-000 is a Datamate Mix-Tek board-to-cable header featuring 10 positions (8 signal + 2 power). It utilizes a 2.00mm pitch with male pin contacts and gold plating. Designed for vertical through-hole mounting, this connector supports reliable signal and power transmission in compact electronic assemblies.
Feature Summary
- Integrates mixed signal and power contacts within a single housing
- Employs robust gold-plated male pin contacts for conductivity
- Features a secure vertical through-hole termination style
Applications
- Compact electronic assemblies requiring mixed signal and power
- Board-to-cable interconnects in industrial equipment
- Consumer electronics with space-constrained layouts
Procurement Notes
Verify the specific contact configuration matches the design requirement of eight signal pins and two power pins. Confirm that the vertical through-hole mounting style aligns with the PCB layout. Ensure the 2.00mm pitch is compatible with the mating cable or harness specifications to guarantee proper mechanical fit and electrical performance.
Selection Notes
Select this component when a combined solution for signal and power distribution is necessary within a limited footprint. The Datamate Mix-Tek series offers high density and reliability. Consider the vertical orientation and through-hole termination when designing the PCB stack-up and assembly process to ensure adequate clearance and solder joint integrity.
Part Context
This part belongs to the Harwin Datamate J-Tek and Mix-Tek families, known for high-reliability interconnects. The Mix-Tek variant specifically allows for mixing different contact types in one connector. This series is widely used in demanding environments where space efficiency and connection stability are critical priorities for system designers.
Replacement Considerations
Direct substitutes include other Harwin Datamate Mix-Tek headers with identical 10-position configurations and mixed contact arrangements. Verify that any alternative maintains the same 2.00mm pitch and vertical through-hole mounting style to ensure mechanical compatibility without redesigning the PCB footprint.
