Product Detailed Parameters
- Description：VERTICAL PC TAIL CONNECTOR
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：11
- Number of Rows：-
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.232" (5.90mm)
- Contact Shape：Circular, Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze Alloy
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Jackscrews, Mating Guide
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：800VAC/DC
Download product information
Overview

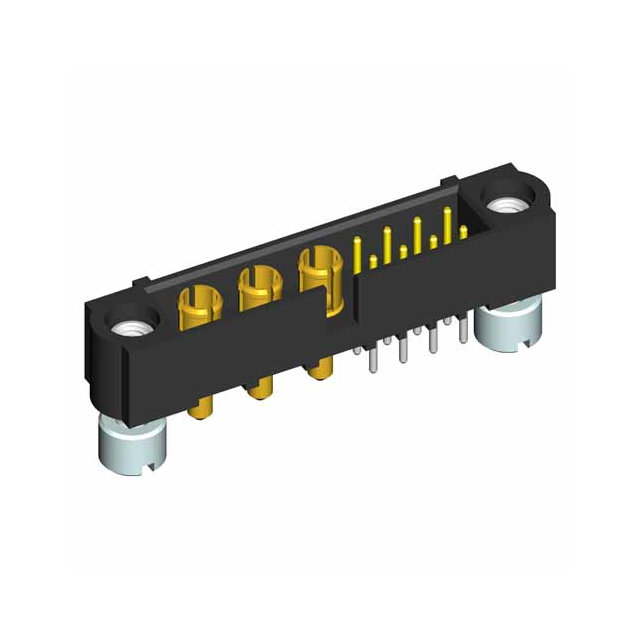

The M80-5T10822M2-03-331-00-000 is a male signal and power vertical through-board connector from the Harwin Datamate J-Tek series. It features a 2 mm pitch with a 2-row configuration, providing 44 positions (22+22). The component utilizes phosphor bronze contacts with gold plating for reliable conductivity. Designed for surface mount or vertical through-hole termination, it employs polyphenylene sulfide (PPS) insulators rated UL 94 V-0. The connector supports a current rating of 3 A and operates within a temperature range of -55°C to +125°C.
Feature Summary
- Vertical through-board design for direct board integration
- Mixed signal and power contact arrangement in dual rows
- Gold-plated phosphor bronze contacts for durability
- High-temperature resistant PPS housing material
Applications
- Industrial control systems requiring mixed signal/power connections
- Automotive electronics modules
- Telecommunications equipment interfaces
- Medical device internal interconnects
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to ensure correct tail length and jack screw inclusion. Confirm RoHS compliance status as variations exist within the Datamate family. Cross-reference the full part number with manufacturer databases to validate current production status and avoid obsolete stock acquisition.
Selection Notes
Select this component when vertical mating orientation and high-density mixed signal/power routing are required. Ensure PCB layout accommodates the 2 mm pitch and 2-row spacing. Verify that the 3 A current rating meets circuit demands. Check mechanical constraints for the vertical profile and available locking mechanisms.
Part Context
This part belongs to the Datamate J-Tek family, known for high-reliability interconnects. It complements female receptacles and header assemblies within the same pitch system. The series is widely used in harsh environments due to its robust mechanical latching and environmental sealing capabilities.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Consult Harwin engineering for cross-reference options if obsolescence occurs.
