Product Detailed Parameters
- Description：VERTICAL PC TAIL CONNECTOR
- Series：*
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：-
- Contact Type：-
- Pitch - Mating：-
- Number of Positions：-
- Number of Rows：-
- Row Spacing - Mating：-
- Number of Positions Loaded：-
- Style：-
- Shrouding：-
- Mounting Type：-
- Termination：-
- Fastening Type：-
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：-
- Contact Shape：-
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：-
- Features：-
- Operating Temperature：-
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：-
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

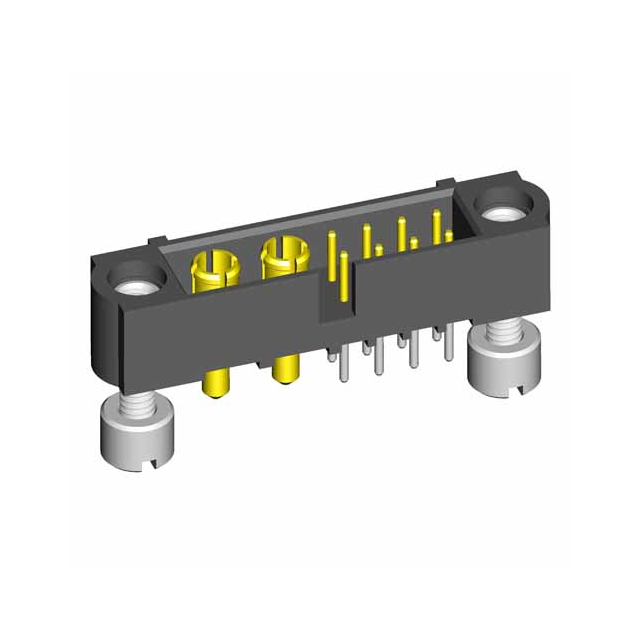

The M80-5T10822M3-02-331-00-000 is a male signal and power vertical through-board connector from the Harwin Datamate J-Tek series. It features an 8-position configuration with a 2.00mm pitch. The connector utilizes phosphor bronze contacts with gold plating for mating surfaces and tin plating for termination. It supports a rated current of 2.2A and withstands voltages up to 800V AC/DC. The housing is constructed from black glass-filled polyphenylene sulfide (PPS) meeting UL94 V-0 flammability standards, ensuring reliable performance in board-to-board or cable applications.
Feature Summary
- Vertical through-board mounting design for space-constrained assemblies
- Mixed contact configuration supporting both signal and power transmission
- High-reliability locking mechanism ensures secure connection integrity
- Robust insulator material provides thermal stability and flame resistance
Applications
- Industrial control systems requiring high reliability
- Medical equipment with strict safety standards
- Automotive electronics modules
- Telecommunications infrastructure hardware
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to confirm pin count, contact plating, and insulation material. Ensure compatibility with mating female connectors within the Datamate Mix-Tek family. Confirm RoHS compliance status if required by project specifications. Cross-reference part numbers carefully as minor suffix variations significantly alter electrical and mechanical properties.
Selection Notes
Select this component when vertical orientation and mixed signal/power capabilities are required. The 2.00mm pitch offers a balance between density and ease of assembly. Consider the 2.2A current rating for power distribution needs. Verify that the locking feature aligns with the mechanical constraints of the enclosure. Ensure mating partners share the same series designation for proper interface compatibility.
Part Context
This part belongs to the Datamate J-Tek line, known for high-density interconnect solutions. The M80 series is widely used in demanding environments due to its rugged construction. It complements female counterparts in the same family to form complete connector pairs. The design emphasizes durability and consistent electrical performance across varying conditions.
Replacement Considerations
Direct substitutes must match the 8-position count, 2.00mm pitch, and vertical male configuration. Verify identical contact materials and plating thicknesses for electrical continuity. Ensure housing dimensions and locking mechanisms are compatible with existing PCB layouts and mating connectors. Consult Harwin's cross-reference tools for parametrically similar alternatives.
