Product Detailed Parameters
- Description：DATAMATE J-TEK DIL MALE VERTICAL
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 121°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800VAC/DC
Download product information
Overview

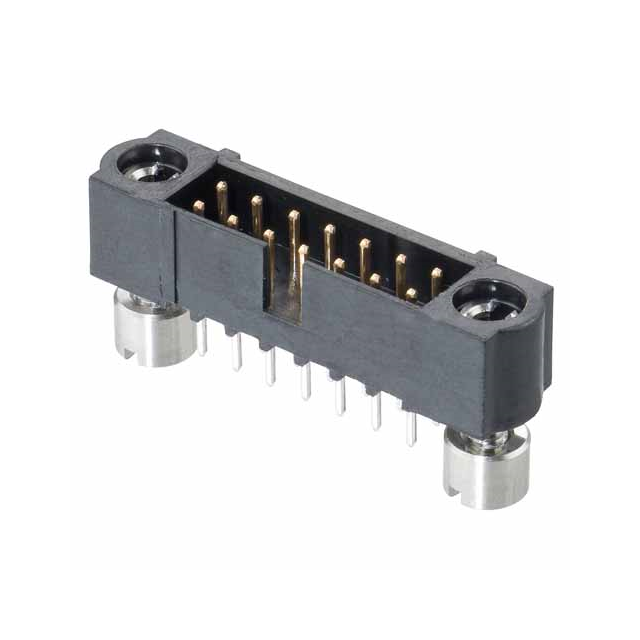

The M80-5T10822ME is a Datamate J-Tek series male connector designed for vertical through-board mounting. It features a 2-row, 8-position configuration with a 2.00mm pitch. The contacts are constructed from phosphor bronze with gold plating on the mating interface and tin on the tail. The housing is made of black polyphenylene sulfide (PPS) reinforced with glass fiber, rated UL94 V-0. It supports a current rating of 2.2A and voltage up to 800VAC/DC, operating within -55°C to +125°C.
Feature Summary
- Vertical through-hole termination for direct board integration
- Gold-plated phosphor bronze contacts for reliable signal transmission
- High-temperature resistant PPS insulation material
- Integrated keying and flange options for secure assembly
Applications
- Industrial control systems requiring high-reliability interconnects
- Automotive electronics modules
- Medical device instrumentation
- Telecommunications equipment
Procurement Notes
Verify the specific suffix 'ME' against the official Harwin datasheet to confirm the exact contact length and housing variant. Ensure compatibility with the corresponding female receptacle from the same Datamate Mix-Tek or J-Tek family. Confirm that the required stacking height matches the application's mechanical constraints before ordering.
Selection Notes
Select this component when a vertical orientation and through-hole soldering are required for an 8-position connection. Compare the 2.2A current rating against the circuit load requirements. Consider the 2.00mm pitch spacing relative to adjacent components on the PCB layout to ensure adequate clearance and thermal management during soldering.
Part Context
This part belongs to the Harwin Datamate J-Tek line, known for high-density rectangular connectors. It complements female sockets like the M80-4610842. The series is engineered for harsh environments, offering robust mechanical locking and consistent electrical performance across a wide temperature range compared to standard consumer-grade connectors.
Replacement Considerations
Direct substitutes include other 8-position vertical male headers in the Datamate J-Tek series with identical 2.00mm pitch and through-hole termination. Verify pin count, row configuration, and contact plating specifications to maintain electrical continuity and mechanical fit.
