Product Detailed Parameters
- Description：CONN HEADER VERT 8POS 2MM
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Turn Lock
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 121°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

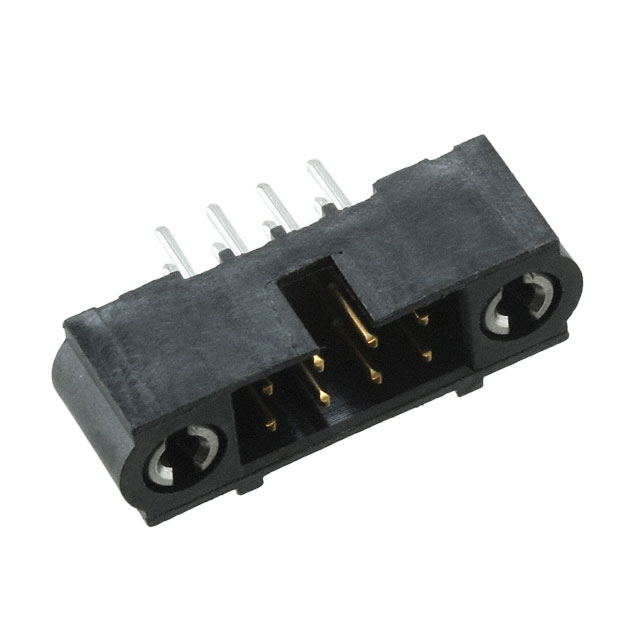

The M80-5T10842MC is a vertical header connector from the Harwin Datamate J-Tek series. It features a 4+4 position configuration with male pins and a 2.00mm pitch. The unit utilizes tin-plated contacts on phosphor bronze, housed in black PPS insulation. Rated for 120V and 2.2A, it supports through-hole solder termination. Key mechanical attributes include a push-pull locking mechanism, keying options, and mating flanges.
Feature Summary
- Vertical board-to-board or cable mounting style
- Push-pull locking mechanism for secure connection
- Keyed design with mating flange compatibility
- Tin-plated contact surfaces for reliable conductivity
Applications
- Industrial control systems
- Medical equipment
- Test and measurement instrumentation
Procurement Notes
Verify the specific ordering suffix to confirm pin count, plating type, and locking mechanism details. Ensure the selected variant matches the required current rating and environmental conditions. Cross-reference the manufacturer datasheet for precise dimensional tolerances and mating partner specifications before finalizing procurement orders.
Selection Notes
Select this component for applications requiring a compact, high-density interconnect solution. The vertical orientation facilitates space-constrained designs. Consider the tin plating for cost-effective general-purpose use rather than high-cycle environments. Verify that the mating housing accommodates the specified push-pull lock and keying requirements.
Part Context
This part belongs to the Datamate J-Tek family, known for its robust performance in demanding environments. The series offers various configurations including surface mount and right-angle options. The M80-5T10842MC specifically addresses needs for vertical headers with standard through-hole termination and reliable signal transmission capabilities.
Replacement Considerations
Compatible mating housings include models such as M80-4C10605FC and M80-4D10605FC. Ensure replacement parts maintain the same 2.00mm pitch and locking mechanism type to guarantee proper mechanical engagement and electrical continuity.
