Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 2MM
- Series：Datamate S-Tek
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.106" (2.69mm)
- Overall Contact Length：-
- Insulation Height：0.319" (8.10mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Shielded
- Operating Temperature：-55°C ~ 121°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

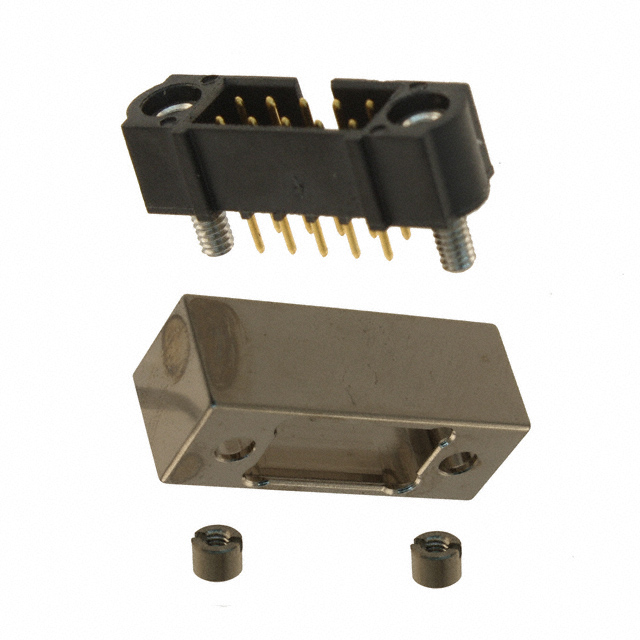

The M80-5T11005B1 is a Datamate J-Tek series male header connector designed for vertical through-board mounting. It features a 2x5 position configuration with a 2.7mm PC-tail length and includes a metal backshell for shielding. The assembly utilizes gold-on-gold contact finishes to ensure reliable signal integrity. This component is classified as obsolete and is no longer manufactured by Harwin Inc.
Feature Summary
- Vertical through-board mounting style
- Integrated metal backshell for shielding
- Gold-on-gold contact finish
Applications
- Board-to-cable interconnects
- Board-to-wire interconnects
- Compact rectangular connector applications
Procurement Notes
This part number is officially listed as obsolete and is no longer in active production by the manufacturer. Procurement should focus on verifying availability from authorized distributors or surplus suppliers. Buyers must confirm the exact condition of any remaining stock, as lead times and authenticity cannot be guaranteed through standard manufacturing channels. Alternative sourcing strategies are recommended.
Selection Notes
Engineers requiring this specific configuration should consider current Datamate J-Tek equivalents that offer similar pin counts and shielding capabilities. Since the original part is discontinued, selecting a direct replacement requires matching the vertical orientation, 2.7mm tail length, and metal backshell requirements to ensure mechanical and electrical compatibility within the existing design constraints.
Part Context
The M80-5T11005B1 belongs to the Datamate J-Tek family, known for high-density interconnect solutions. This specific model represents a male header variant intended for robust board-to-cable connections. Its inclusion of a metal backshell distinguishes it from standard plastic-insulated versions, providing enhanced protection against electromagnetic interference in sensitive electronic assemblies.
Replacement Considerations
As an obsolete component, no official direct substitute is confirmed in public documentation. Users should evaluate current Harwin Datamate J-Tek headers with comparable 2x5 configurations and shielding options. Cross-referencing mechanical dimensions and contact specifications is essential when identifying viable alternatives.
