Product Detailed Parameters
- Description：DATAMATE 2-ROW MIX-TEK MALE VERT
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：-
- Number of Positions：12 (10 + 2 Power)
- Number of Rows：-
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview

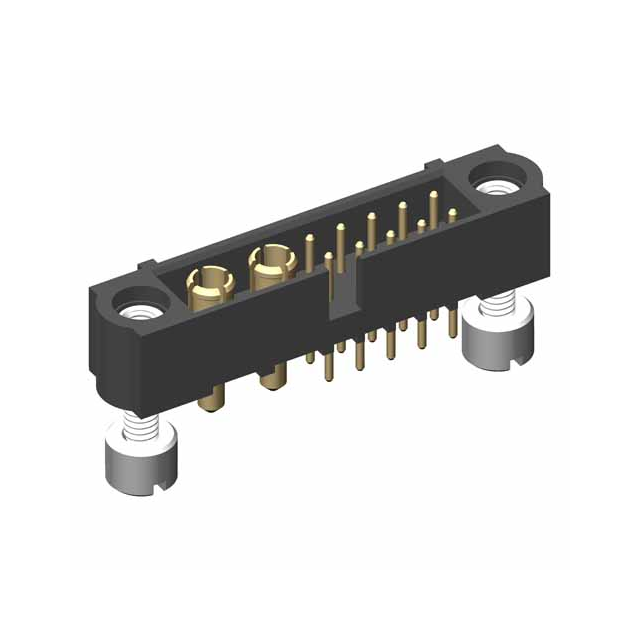

The M80-5T11005M3-02-331-00-000 is a Harwin DATAMATE Mix-Tek board connector featuring a male signal and power vertical through-board configuration. It comprises two rows with ten contacts, utilizing a hybrid terminal design for mixed-signal applications. The component operates at a voltage rating of 800VAC/DC and supports current ratings of 2.2A and 20A. It achieves a mated stacking height of 7.3mm and features black insulation.
Feature Summary
- Hybrid terminal design accommodating both signal and power connections within a single connector housing
- Vertical through-board mounting style suitable for direct PCB integration
- High voltage capability rated for 800VAC/DC operation
Applications
- Industrial control systems requiring mixed signal and power interfaces
- Power distribution units with compact form factor constraints
- Electronic equipment needing high-voltage isolation in dense layouts
Procurement Notes
Verify the specific contact arrangement and pinout against the official Harwin DATAMATE Mix-Tek datasheet to ensure compatibility with mating connectors. Confirm that the vertical orientation and 7.3mm stacking height align with the mechanical assembly requirements. Check RoHS compliance status if required by project specifications.
Selection Notes
Select this component when a vertical male header is required for mixed-signal applications. Ensure the PCB layout accommodates the specific hybrid terminal spacing. Verify that the 2.2A and 20A current ratings meet the electrical load requirements of the target circuit design.
Part Context
This part belongs to the Harwin DATAMATE Mix-Tek series, designed for versatile connectivity solutions. The series allows for combining different terminal types in one housing, facilitating efficient board-to-board or cable-to-board connections in space-constrained environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Harwin engineering for potential alternatives if this specific configuration is unavailable.
FAQ
What is the maximum operating voltage for this connector?
The connector has a voltage rating of 800VAC/DC.
Does this connector support mixed signal and power connections?
Yes, it features a hybrid terminal design that accommodates both signal and power contacts.
