Product Detailed Parameters
- Description：CONN HEADER VERT 13POS
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bulk
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：13 (10 + 3 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview

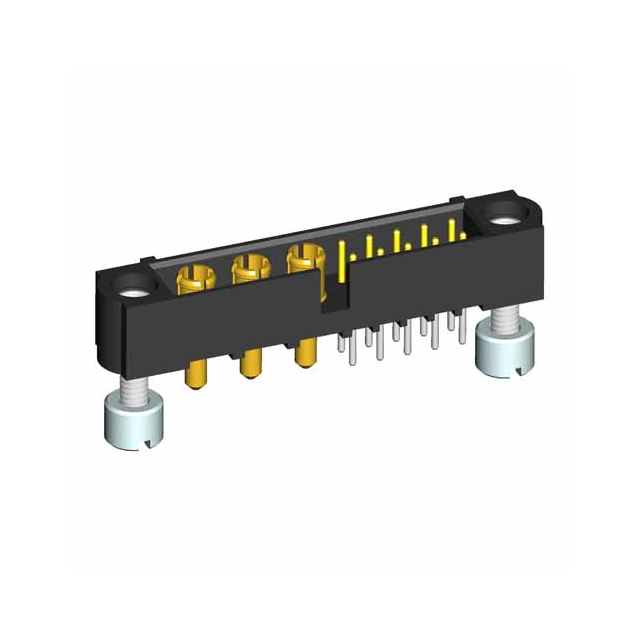

The M80-5T11022M3-03-331-00-000 is a Datamate Mix-Tek header connector manufactured by Harwin Inc. It features a 10-position configuration with a 2mm pitch and vertical through-hole termination. The component utilizes phosphor bronze contacts with gold plating for mating surfaces and tin plating for tails, housed in black glass-filled polyphenylene sulfide (PPS). It supports a rated current of 2.2A and operates within a temperature range of -55°C to +125°C.
Feature Summary
- Datamate Mix-Tek series design enabling mixed signal and power integration
- Vertical orientation with threaded locking mechanism for secure board attachment
- Four-wall shielding on contact areas for enhanced environmental protection
Applications
- Industrial control systems requiring high-reliability interconnects
- Medical equipment demanding robust electrical connections
- Automotive electronics utilizing mixed-signal architectures
Procurement Notes
Verify the specific ordering suffix against official Harwin documentation to confirm exact tail length, housing color, and locking hardware specifications. Ensure compatibility with mating sockets regarding keying options and flange configurations before procurement.
Selection Notes
Select this component for applications necessitating vertical mounting with mechanical security via jackscrews. Confirm that the 2.2A current rating and 800VAC/DC voltage limits align with system requirements. Validate PCB footprint dimensions against the official datasheet.
Part Context
This part belongs to the Datamate J-Tek and Mix-Tek families from Harwin, designed for high-density interconnect solutions. These connectors are engineered for harsh environments, offering reliable performance across wide temperature ranges and providing versatile mounting options for diverse electronic assemblies.
Replacement Considerations
Consult official Harwin cross-reference guides for verified substitutes. Generic equivalents may not match the precise locking mechanism or dimensional tolerances required for secure installation.
