Product Detailed Parameters
- Description：CONN HEADER VERT 16POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：16 (12 + 4 Power)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

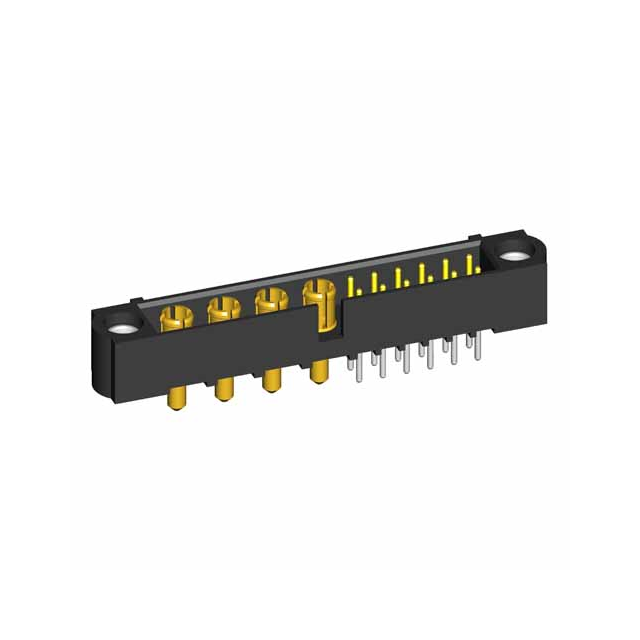

The Harwin M80-5T11205M1-04-331-00-000 is a Datamate Mix-Tek header connector featuring 16 positions arranged in a dual-row configuration. It utilizes a 2.00mm pitch and supports through-hole termination for board-to-board mounting. The contacts are gold-plated beryllium copper pins, with four dedicated power pins integrated into the layout. The housing is constructed from black PPS material reinforced with glass fiber, rated UL94 V-0. Operating temperatures range from -55°C to 125°C.
Feature Summary
- Four-finger contact design ensures high reliability under vibration and shock
- Integrated keying slots prevent mating errors
- Compatible with mating flanges and installation hardware
- Shielded enclosure options available for noise reduction
Applications
- High-power motor control cabinets
- Industrial automation systems requiring stable connections
- Harsh environment electronics demanding durability
Procurement Notes
Verify the specific pin count configuration (12 signal plus 4 power) against schematic requirements. Confirm that the through-hole footprint matches the PCB design constraints. Ensure compatibility with the intended mating female receptacle within the Datamate series. Check for required accessories such as locking mechanisms or shields if environmental protection is necessary.
Selection Notes
Select this component when a robust board-to-board connection is needed with mixed signal and power capabilities. The 2mm pitch allows for dense packing while maintaining electrical isolation. Consider the operating temperature range and mechanical stress factors of the application to ensure long-term performance stability.
Part Context
This part belongs to the Datamate Mix-Tek family, designed for applications requiring high reliability and durability. The series is known for its ability to withstand intense vibration and shock. It offers various configurations to suit different signal and power needs in industrial settings.
Replacement Considerations
Direct substitutes must maintain the 2mm pitch, 16-position count, and through-hole termination. Verify that any alternative part supports the same voltage and current ratings. Ensure mechanical compatibility with existing mounting structures and mating connectors.
