M80-5T11205M1-06-331-00-000

Overview

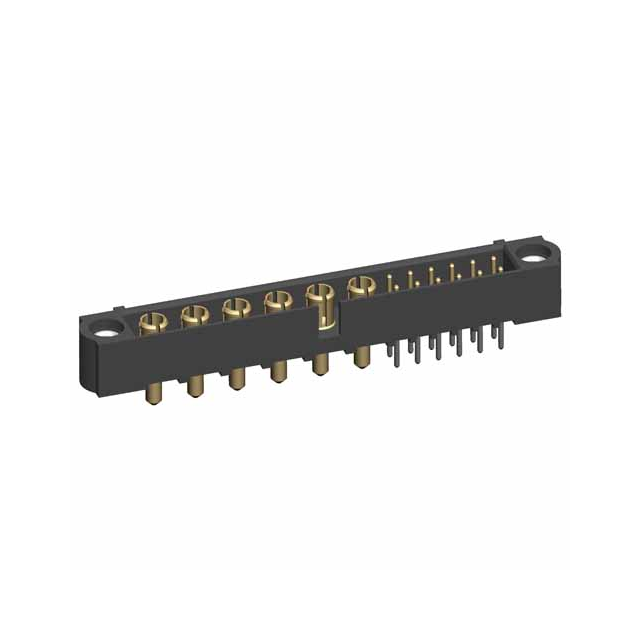

The M80-5T11205M1-06-331-00-000 is a vertical male header connector from the Harwin Datamate Mix-Tek series. It features a 2-row configuration with 12 positions, specifically arranged as 10 signal contacts and 2 power contacts. The connector utilizes a 2.00mm (0.079 inch) mating pitch and employs through-hole termination for board mounting. Contact materials are phosphor bronze with gold plating on mating surfaces to ensure reliable conductivity. The housing is constructed from black PPS material reinforced with glass fiber, providing UL94 V-0 flammability rating. It supports a rated current of 2.2A per signal contact and includes push-pull locking mechanisms for secure engagement.

Feature Summary

• Datamate Mix-Tek architecture combining signal and power contacts in a single compact header
• Push-pull locking system ensures secure mechanical retention during vibration
• Gold-plated phosphor bronze contacts provide low resistance and corrosion resistance
• Glass-fiber reinforced PPS insulation offers high thermal stability and flame retardancy

Applications

• High-power motor control cabinets
• Industrial automation systems requiring mixed signal/power connections
• Embedded electronics interfaces demanding robust board-to-board connectivity

Procurement Notes

Verify the specific pinout configuration matches the design requirements, particularly the placement of the two power contacts within the 12-position array. Confirm that the mating plug utilizes compatible Datamate Mix-Tek female contacts rated for the intended current load. Ensure the assembly process accommodates the vertical orientation and through-hole soldering profile specified for this component type.

Selection Notes

Select this part when a mixed-signal solution is required in a space-constrained environment. The Mix-Tek series allows for flexible arrangement of signal and power pins compared to standard signal-only headers. Consider the 2.2A current rating for each contact when designing power distribution paths. The vertical form factor is suitable for direct PCB mounting where cable entry is not required at the header interface.

Part Context

This component belongs to the Harwin Datamate J-Tek and Mix-Tek families, known for their modular design and high-density interconnect capabilities. The M80-5T1 base indicates a male header variant within the broader M80 product line. It is designed to mate with corresponding female plugs or sockets, offering a versatile interconnect solution for various electronic assemblies requiring reliable electrical connections.

Replacement Considerations

Direct substitutes include other Harwin Datamate Mix-Tek male headers with identical 12-position configurations and matching pinouts. Verify compatibility with existing mating connectors before substitution. Generic rectangular connectors do not offer the same locking mechanism or current density characteristics.
