M80-5T11205M2-02-331-00-000

Overview

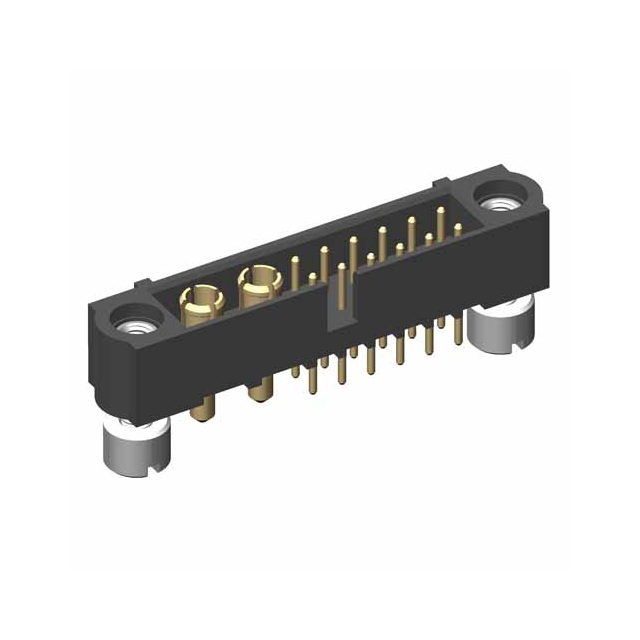

Harwin M80-5T11205M2-02-331-00-000 is a Datamate Mix-Tek male header connector designed for vertical through-hole mounting. It features a 14-position configuration, comprising 12 signal pins and 2 power contacts, with a 2.00mm pitch. The connector utilizes round pin sockets made of beryllium copper, terminated with gold plating for reliable mating. Constructed with black glass-filled polyphenylene sulfide (PPS) insulation rated UL94 V-0, it supports an operating temperature range of -55°C to 125°C. The design includes locking mechanisms and compatibility with shielded backshells.

Feature Summary

• Vertical through-hole mounting style for direct board integration
• Mixed-signal architecture combining 12 signal positions with 2 dedicated power contacts
• Gold-plated beryllium copper contacts ensuring durable electrical performance
• High-temperature resistant PPS insulation material with UL94 V-0 flammability rating

Applications

• Industrial control systems requiring mixed signal and power distribution
• Test and measurement equipment interfaces
• Telecommunications hardware connections
• Automotive electronic modules

Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status. Ensure that the required mating accessories, such as compatible backshields or housing components, are included in the procurement plan. Cross-reference the contact termination type and insulation material specifications with the target application's environmental requirements before finalizing orders.

Selection Notes

Select this component when a vertical orientation and mixed signal-power layout are required. The 2.00mm pitch suits dense board layouts. Verify that the through-hole soldering process aligns with the assembly capabilities. Consider the need for additional mechanical locking features if vibration resistance is critical for the specific installation environment.

Part Context

This connector belongs to the Harwin Datamate Mix-Tek series, which specializes in high-density interconnect solutions. The series allows for flexible combinations of signal and power contacts within a single housing. The M80 coding indicates a specific size and contact arrangement within the broader product family, distinguishing it from other pitch or row variations.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical mechanical dimensions and electrical characteristics. Consult Harwin technical support for potential alternative configurations if this specific variant is unavailable.

FAQ

What is the contact material used in this connector?

The contacts are manufactured from beryllium copper with gold plating.

Does this connector support shielding?

Yes, the design is compatible with shielded backshells for electromagnetic interference protection.
