M80-5T11205M3-02-331-00-000

Overview

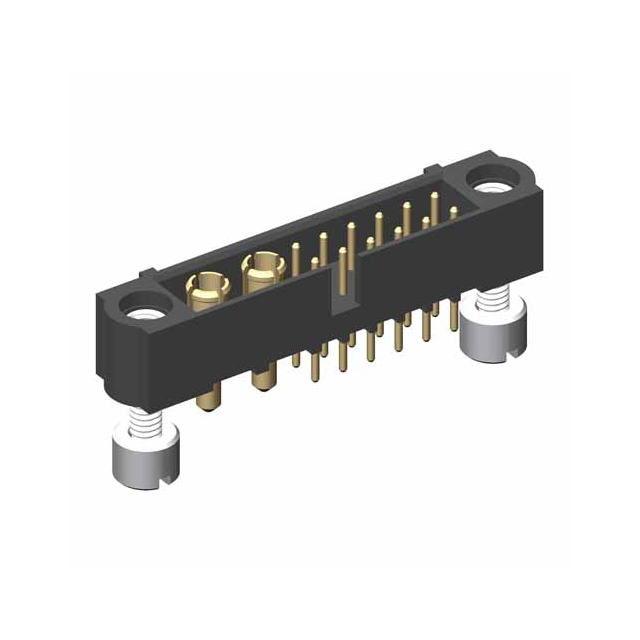

The M80-5T11205M3-02-331-00-000 is a Datamate Mix-Tek male header connector manufactured by Harwin Inc. It features a 14-position configuration, comprising 12 signal pins and 2 dedicated power contacts. The connector utilizes a 2.00mm (0.079 inch) pitch with a dual in-line layout. Designed for vertical through-board installation, it employs solder termination for secure PCB attachment. The housing is black, constructed from glass-filled polyphenylene sulfide (PPS) meeting UL94 V-0 flammability standards. Contacts are gold-plated to ensure reliable conductivity.

Feature Summary

• Integrates mixed signal and power capabilities within a single compact connector assembly
• Features robust jackscrew locking mechanism for secure mating retention
• Utilizes high-temperature resistant PPS insulation material for thermal stability
• Supports vertical board mounting with precise pin alignment for automated assembly

Applications

• Industrial control systems requiring mixed signal and power distribution
• Automotive electronic modules demanding high reliability
• Telecommunications infrastructure equipment
• Medical device internal interconnections

Procurement Notes

Verify the complete part number including suffixes against official Harwin documentation to ensure correct pin count and termination style. Confirm that the specific ordering code matches the required 14-position configuration with integrated power contacts. Cross-reference the manufacturing date code if long-term supply continuity is critical for production schedules.

Selection Notes

Select this component when a vertical through-hole male header is required for mixed signal and power applications. Ensure the design accommodates the 2.00mm pitch and the specific height requirements of the jack screw mechanism. Verify compatibility with corresponding female receptacles from the same Datamate Mix-Tek series for proper mating engagement.

Part Context

This component belongs to the Harwin Datamate Mix-Tek series, designed for high-density interconnects. The series is known for combining signal and power contacts in a small form factor. The M80-5T11205M3 variant specifically addresses needs for vertical board-to-cable or board-to-board connections where space efficiency and electrical integrity are paramount.

Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Compatible alternatives must be sourced from Harwin's official cross-reference tools or verified datasheets to maintain mechanical and electrical specifications.
