M80-5T11205M3-04-331-00-000

Overview

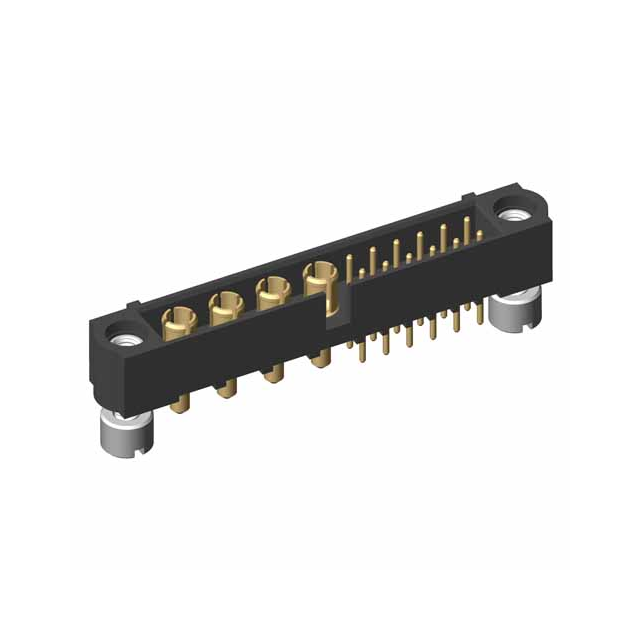

The M80-5T11205M3-04-331-00-000 is a Datamate Mix-Tek rectangular connector plug manufactured by Harwin Inc. It features a 16-position configuration with a 2mm pitch, designed for vertical through-board mounting. The assembly includes 12 signal contacts and 2 power contacts, utilizing male pin terminals with gold plating. The connector employs jackscrew locking mechanisms for secure attachment and operates within a temperature range of -55°C to +125°C.

Feature Summary

• Datamate Mix-Tek architecture supports mixed signal and power configurations in a compact form factor
• Jackscrew locking system ensures high vibration resistance and secure mechanical retention
• Gold-plated beryllium copper contacts provide reliable conductivity and corrosion resistance
• Vertical through-board termination facilitates direct PCB integration without additional cabling

Applications

• High-power motor control cabinets requiring stable electrical connections under vibration
• Industrial automation systems demanding robust board-to-board interconnects
• Harsh environment applications subject to shock, acceleration, or extreme temperatures
• Safety-critical equipment where connection integrity during repeated mating cycles is essential

Procurement Notes

Verify the complete part number including suffixes against official Harwin documentation to ensure correct contact count and termination style. Confirm RoHS compliance status and material specifications prior to ordering. Cross-reference datasheet revisions to validate current manufacturing status and availability. Ensure compatibility with mating receptacles and associated hardware such as backsells or mounting brackets.

Selection Notes

Select this component when a vertical, solder-terminal plug with jackscrew locking is required for mixed signal and power applications. The 2mm pitch allows for dense circuit layouts while maintaining adequate spacing for higher current paths. Consider the 12+2 configuration for designs needing dedicated power lines alongside multiple signal channels. Evaluate thermal requirements against the -55°C to +125°C operating range.

Part Context

This connector belongs to the Datamate Mix-Tek series, which is engineered for durability in demanding industrial settings. The series utilizes four-finger beryllium copper contacts to maintain connection integrity under severe mechanical stress. The M80-5T11205M3 variant specifically addresses needs for vertical mounting with integrated locking, distinguishing it from panel-mount or cable-wire variants within the broader M80 family.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
