M80-5T11222M3-00-000-04-331

Overview

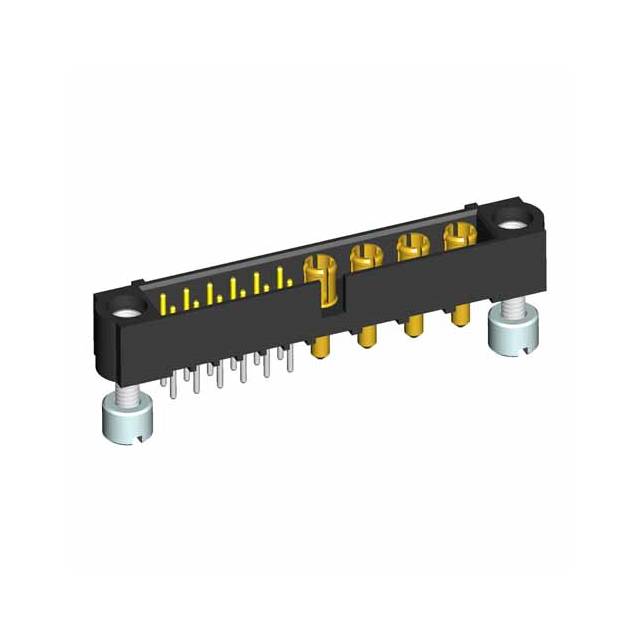

The Harwin M80-5T11222M3-00-000-04-331 is a Datamate J-Tek mixed-contact header featuring 16 positions arranged in a 2-row configuration. It utilizes a 2mm pitch and employs male pin contacts for vertical board mounting. The connector supports mixed contact types, combining power and signal capabilities within a single housing. Designed for high-reliability applications, it offers robust mechanical locking features and operates within a standard industrial temperature range.

Feature Summary

• Integrates mixed-contact technology to accommodate both power and signal requirements in a unified connector system.
• Features a compact 2mm pitch design with a 2-row layout to maximize connection density on printed circuit boards.
• Provides secure vertical mounting with integrated locking mechanisms to ensure stable connections under vibration.

Applications

• Industrial control systems requiring mixed signal and power transmission
• Telecommunications equipment with space-constrained board layouts
• Automotive electronics demanding high-reliability interconnects

Procurement Notes

Verify the specific ordering suffix to confirm the exact contact mix and tail length configuration. Ensure compatibility with mating sockets from the same Datamate series. Check for RoHS compliance documentation if required by project specifications. Confirm that the vertical orientation matches the assembly design constraints.

Selection Notes

Select this component when a combination of power and signal lines is needed in a small footprint. The 2mm pitch allows for higher density compared to larger pitch connectors. Consider the mixed-contact nature if separate headers would exceed available board space. Verify that the current ratings of the specific mixed contacts meet the application load requirements.

Part Context

This part belongs to the Harwin Datamate J-Tek family, known for its modular design and high reliability. The M80 prefix indicates the series, while the suffix defines the specific contact arrangement and housing variations. It is widely used in industries requiring durable, high-density interconnect solutions.

Replacement Considerations

Direct substitutes must match the 2mm pitch, 16-position count, and mixed-contact configuration. Verify that any alternative maintains the same vertical mounting style and locking mechanism. Cross-reference mating parts to ensure interface compatibility without modification.

FAQ

What does the 'Mixed-Tek' designation imply for this connector?

It indicates that the header contains a combination of different contact types, typically allowing for both power and signal connections within the same housing.

Is this connector suitable for high-vibration environments?

Yes, the Datamate J-Tek series is designed with robust locking features to maintain connection integrity in demanding conditions.
