M80-5T11222M3-04-331-00-000

Overview

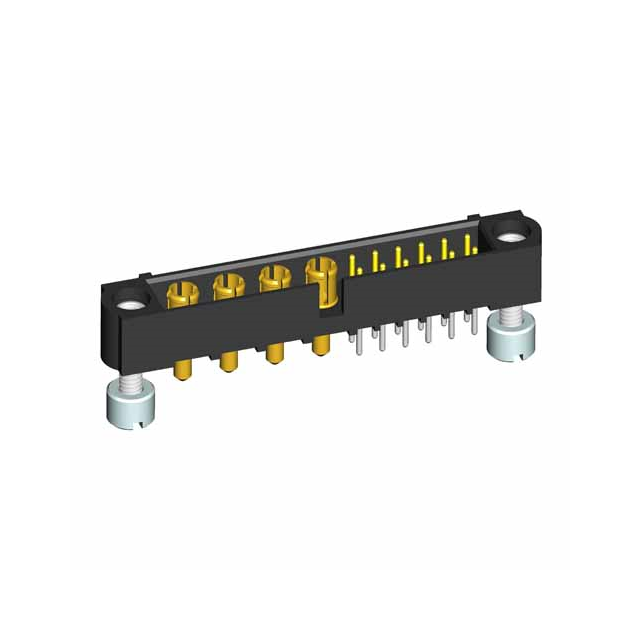

The M80-5T11222M3-04-331-00-000 is a Datamate J-Tek board connector manufactured by Harwin. It features a male header configuration with 16 positions, arranged as 12 signal and 4 power contacts. The connector utilizes a 2.00 mm pitch and is designed for through-hole mounting. Key specifications include a current rating of 3 A per contact and an operating temperature range from -55 °C to +125 °C. The housing is constructed from black polyphenylene sulfide (PPS), while the brass contacts are gold-plated.

Feature Summary

• Integrates 12 signal and 4 power contacts within a single 16-position rectangular connector assembly.
• Employs a robust polyphenylene sulfide insulator providing high thermal stability and mechanical strength.
• Features gold-plated brass contacts to ensure reliable electrical performance and corrosion resistance.
• Incorporates jack screws for secure mating and locking between header and receptacle components.

Applications

• Industrial control systems requiring mixed signal and power distribution
• Test and measurement equipment interfaces
• Automotive electronics modules

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm pinout, plating thickness, and termination style. Ensure compatibility with the corresponding M80 series receptacle. Confirm RoHS compliance status and check for any recent lifecycle notifications or obsolescence warnings before finalizing procurement orders.

Selection Notes

Select this component when a mixed-signal solution is required in a compact form factor. The 2.00 mm pitch allows for dense circuit board layouts. Consider the 3 A current rating for power lines and verify that the through-hole termination method aligns with the target PCB manufacturing capabilities. Ensure the mating receptacle includes the necessary jack screw mechanism for secure connection.

Part Context

This part belongs to the Harwin Datamate J-Tek family, a modular interconnect system known for its versatility. The M80 series supports various configurations, including mixed signal/power arrangements. This specific model represents a male header variant designed for vertical board mounting, complementing the broader ecosystem of compatible receptacles and accessories.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Cross-referencing with other Harwin M80 series variants may provide functional alternatives if pin counts and pitches match, but exact replacement requires verifying mechanical dimensions and electrical ratings against the original design requirements.

FAQ

What is the current rating for the power contacts?

The current rating is 3 A per contact.

What material is used for the connector housing?

The housing is made of black polyphenylene sulfide (PPS).
