Product Detailed Parameters
- Description：CONN HEADER VERT 12POS 2MM
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Turn Lock
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange
- Operating Temperature：-55°C ~ 121°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

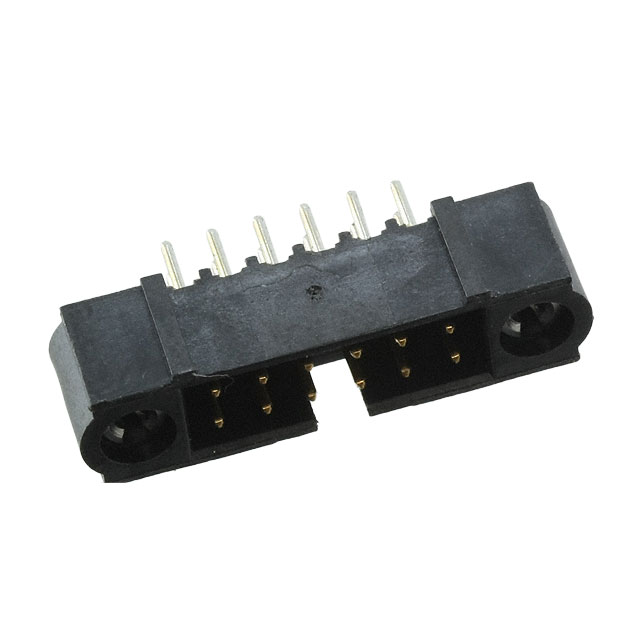

The Harwin M80-5T11242MC is a Datamate J-Tek male pin header designed for wire-to-board connections. It features a 12-position, 2-row configuration with a 2 mm pitch. The connector utilizes through-hole termination and brass contacts with gold plating. Rated for 3 A current and 120 V voltage, it operates within a temperature range of -55°C to +125°C. The housing is constructed from black Polyphenylene Sulfide (PPS).
Feature Summary
- Datamate J-Tek series interconnect system providing secure mating.
- Male pin contact configuration for reliable signal and power transmission.
- Through-hole mounting style for robust PCB attachment.
Applications
- Wire-to-board interconnections in industrial equipment.
- Control panel wiring harnesses.
- Embedded systems requiring high-density I/O.
Procurement Notes
Verify the specific suffix codes against the manufacturer's official datasheet to ensure correct tail length and locking mechanism options. Confirm RoHS compliance status and material specifications prior to ordering. Cross-reference the part number with authorized distributors to validate authenticity and current availability status.
Selection Notes
Select this component when a 12-pin male header with 2 mm pitch is required for through-hole assembly. Ensure the mating connector matches the female counterpart specifications. Consider the operating temperature range and current rating requirements relative to the application environment before finalizing the design.
Part Context
This part belongs to the Harwin Datamate J-Tek family, known for compact, rugged connectors. The M80 series offers various configurations for board-to-board and wire-to-board applications. This specific model serves as a standard male header solution within that ecosystem.
Replacement Considerations
No public confirmed substitute part numbers are available for direct replacement.
FAQ
What is the contact material for the M80-5T11242MC?
The contacts are made of brass with gold plating.
Does this connector support surface mount technology?
No, this specific model uses a through-hole termination style.
