Product Detailed Parameters

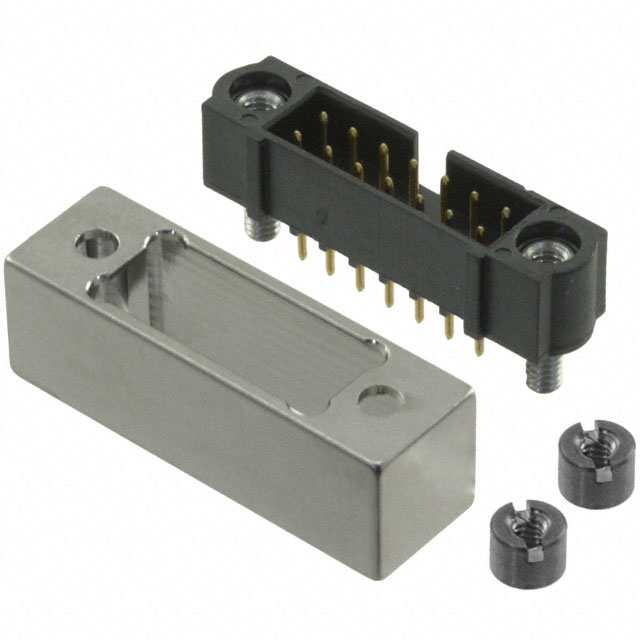

- Description：CONN HEADER VERT 14POS 2MM
- Series：Datamate S-Tek
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：14
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.106" (2.69mm)
- Overall Contact Length：-
- Insulation Height：0.319" (8.10mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Shielded
- Operating Temperature：-55°C ~ 121°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview
The M80-5T11405B1 is a Datamate S-Tek series board connector manufactured by Harwin. It features a male plug configuration with 14 contacts arranged in a single row. The component utilizes crimp termination for wire connections and includes an integrated locking mechanism to secure the mating interface. Designed for vertical panel mount applications, it employs a black insulator and supports small bore contacts suitable for 24-28 AWG wire gauges.
Feature Summary
- Integrates a locking mechanism for secure mating retention
- Supports vertical panel mounting orientation
- Utilizes crimp termination for reliable wire attachment
Applications
- Vertical panel mounted electronic assemblies
- High-reliability interconnect systems requiring locking
- Compact circuit board interfaces
Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating, insulation color, and termination style. Ensure the selected variant matches the required wire gauge range of 24-28 AWG and the intended vertical mounting orientation. Cross-reference the part number with current product obsolescence notices to confirm availability status before procurement.
Selection Notes
Select this component when a locked, vertically mounted male connector is required for 14-way applications. Confirm compatibility with Datamate S-Tek female counterparts. Verify that the crimp termination method aligns with the assembly process and that the housing dimensions fit the designated panel cutout requirements.
Part Context
This part belongs to the Datamate S-Tek family, characterized by high-density interconnect capabilities and robust mechanical locking. The series is engineered for demanding environments where vibration resistance and secure connection integrity are critical. It represents a specialized solution within Harwin's broader board connector portfolio.
Replacement Considerations
Consult Harwin documentation for direct substitutes within the M80 series. Verify pin count, gender, and locking features match exactly. No alternative part numbers are confirmed in the provided data.
