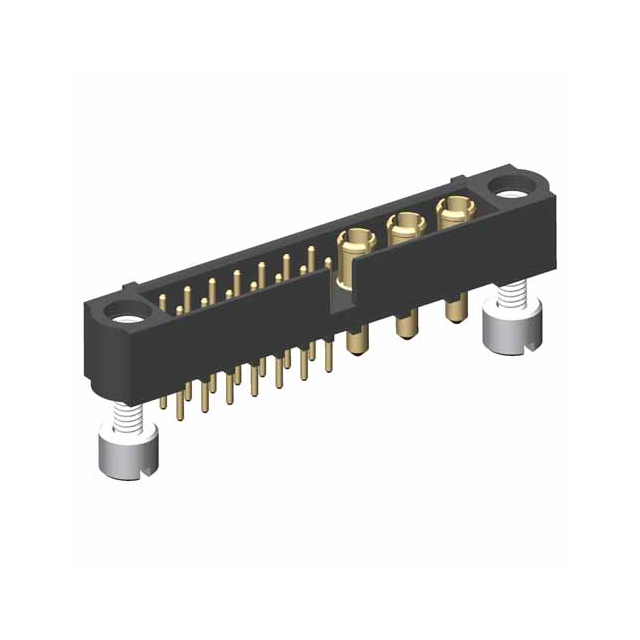

M80-5T11405M3-00-000-03-331

Description：DATAMATE 2-ROW MIX-TEK MALE VERT
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:7e1f5f1d4298 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DATAMATE 2-ROW MIX-TEK MALE VERT
Series：Datamate Mix-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin, Power
Pitch - Mating：-
Number of Positions：17 (14 + 3 Power)
Number of Rows：-
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Gold
Contact Material：Copper Alloy, Phosphor Bronze
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A, 20A
Voltage Rating：800VAC/DC

Download product information

M80-5T11405M3-00-000-03-331

Overview

The M80-5T11405M3-00-000-03-331 is a board connector manufactured by Harwin Inc. It features 17 contacts arranged in two rows, designed as a male header with straight orientation. The component utilizes IDC termination for the terminal interface and employs an M2x0.4 screw thread for mounting. The insulator is black, and the unit functions as a receptacle.

Feature Summary

Utilizes IDC termination method for reliable electrical connection
Incorporates M2x0.4 threaded mounting for secure attachment
Features a straight male configuration for board integration

Applications

High-power motor control cabinet installations
Embedded communication applications requiring stable operation
General electronic equipment interconnection

Procurement Notes

Verify the specific part number against official Harwin documentation to confirm compatibility with required mating connectors and mounting hardware. Ensure that the IDC termination style aligns with the cable assembly specifications intended for use. Cross-reference the M2x0.4 threading requirements with the mechanical design of the target application board or chassis to guarantee proper fit and secure installation during procurement.

Selection Notes

Select this component when a male IDC header with threaded mounting is required for high-reliability connections. Consider the straight orientation and black insulator material for visual identification and spatial constraints. Evaluate the contact count and row arrangement against the signal routing needs of the system to ensure adequate connectivity without excessive board space consumption.

Part Context

This part belongs to the M80 series of board connectors from Harwin Inc., which are designed for robust industrial and commercial applications. The series typically offers various termination styles and contact arrangements to accommodate diverse electronic assembly requirements. The specific model integrates standard mechanical dimensions with specialized mounting features for enhanced stability in demanding environments.
