M80-5T11442MC

Overview

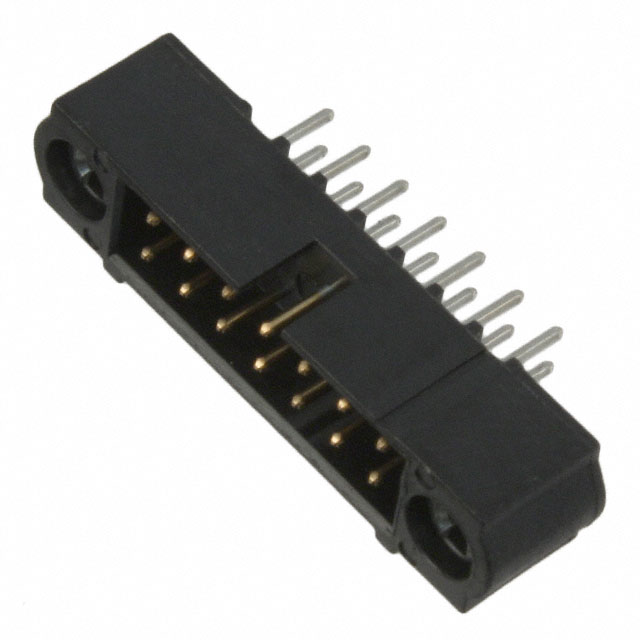

The Harwin M80-5T11442MC is a Datamate J-Tek male pin header designed for wire-to-board connections. It features a 2 mm pitch and a 14-position configuration arranged in two rows. The connector utilizes through-hole termination for secure PCB mounting. Constructed with brass contacts gold-plated for conductivity, the housing is black Polyphenylene Sulfide (PPS). It supports a current rating of 2.2 A and operates within a temperature range of -55 C to +125 C.

Feature Summary

• Datamate J-Tek series interconnect system
• Male pin contact type for board connection
• Through-hole solder termination method
• Gold-plated brass contacts

Applications

• Industrial control systems
• Data center infrastructure
• Aerospace electronic assemblies

Procurement Notes

Verify the specific suffix MC against official Harwin documentation to confirm exact stacking height variants and mating compatibility. Ensure the selected variant matches the required mechanical clearance and thermal performance specifications for the target application environment before finalizing procurement orders.

Selection Notes

Select this component when a 2 mm pitch male header is required for high-reliability applications. Confirm that the 14-position layout fits the design constraints. Verify that the 2.2 A current rating and PPS material properties meet the electrical and environmental demands of the specific circuit design.

Part Context

This part belongs to the Datamate J-Tek family, known for robust power-to-board solutions. It complements female counterparts within the same series to form complete interconnect systems. The J-Tek line emphasizes durability and precise alignment for demanding industrial and aerospace environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
