M80-5T12005B1

Overview

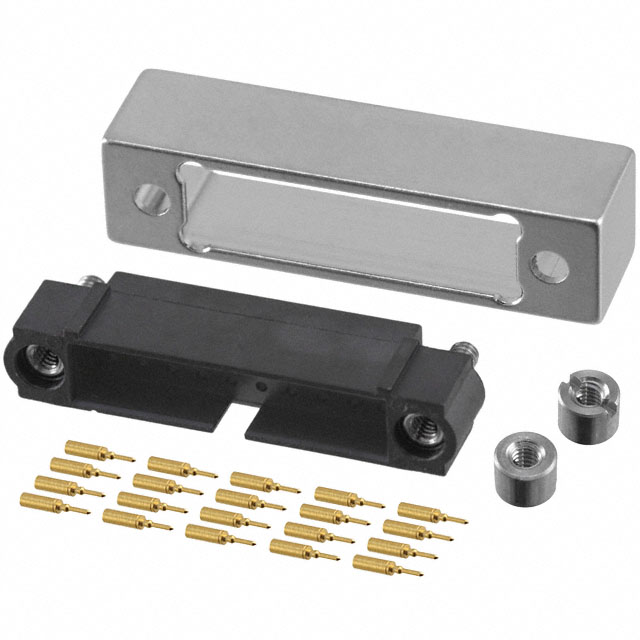

The M80-5T12005B1 is a Datamate J-Tek DIL vertical male header assembly manufactured by Harwin Inc. It features a 20-position configuration arranged in a 10+10 layout with a 2.00mm (0.079 inch) mating pitch. The connector utilizes PC-tail termination for through-hole mounting and includes a metal backsheel for strain relief and shielding. Key electrical specifications include a current rating of 3A and a voltage rating of 120V. The housing is constructed from black polyphenylene sulfide (PPS) with glass fill, rated UL94 V-0. Contact materials consist of phosphor bronze with gold plating on mating surfaces.

Feature Summary

• Vertical board-to-cable or board-to-wire interconnect design
• Integrated metal backsheel for mechanical protection and EMI shielding
• Shrouded four-wall construction for secure mating alignment
• Keying slot and mating flange for precise orientation

Applications

• Compact electronic device interconnects requiring vertical mounting
• Industrial control systems needing shielded signal paths
• Automotive electronics with space-constrained layouts
• Medical equipment requiring reliable high-density connections

Procurement Notes

Verify component authenticity against official Harwin documentation due to potential obsolescence risks. Confirm that the specific ordering suffix matches the required metal backsheel configuration. Check current availability status as distribution channels may vary. Ensure compatibility with mating sockets from the same Datamate J-Tek series. Validate environmental compliance requirements against project specifications before finalizing procurement orders.

Selection Notes

Select this component when vertical through-hole mounting is required for board-to-cable applications. Choose the M80-5T12005B1 for its integrated shielding capabilities provided by the metal backsheel. Consider the 2.00mm pitch for density requirements within limited board areas. Verify that the 3A current rating meets the circuit load demands. Ensure the operating temperature range aligns with the intended application environment.

Part Context

This part belongs to the Datamate J-Tek series, designed for high-reliability interconnect solutions. The M80-5T12005B1 specifically addresses needs for shielded, vertical headers. It complements the broader Harwin connector portfolio by offering robust mechanical performance. The series is known for compact form factors suitable for modern electronics. This model integrates both signal integrity and physical durability features.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Harwin directly for equivalent recommendations if this specific assembly is unavailable. Verify pinout compatibility before considering alternative vendors.
