Product Detailed Parameters
- Description：DATAMATE 2-ROW MIX-TEK MALE VERT
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：-
- Number of Positions：24 (20 + 4 Power)
- Number of Rows：-
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.130" (3.30mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview

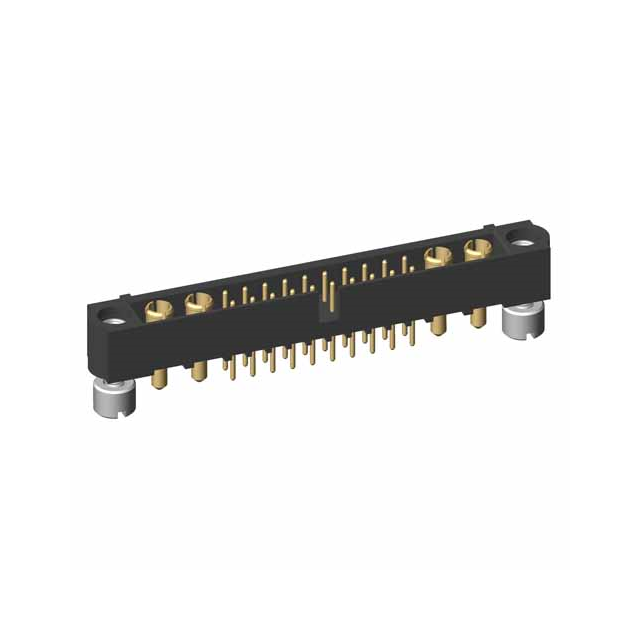

The M80-5T12005M2-02-331-02-331 is a Datamate Mix-Tek board connector manufactured by Harwin. It features a male header configuration with 24 positions, arranged as 20 signal and 4 power contacts. The component utilizes a vertical through-hole mounting style with jack screw locking mechanisms for secure attachment. Contact finishes include gold plating on the termination side and tin/lead on the mating interface, ensuring reliable electrical performance in industrial applications.
Feature Summary
- Integrates mixed technology capabilities within a compact two-row form factor
- Employs jack screw locking to prevent accidental disconnection under vibration
- Features high-reliability contact materials with specified plating finishes
Applications
- Industrial control systems requiring robust interconnects
- Power distribution modules needing dedicated power pins
- Automated machinery with high-vibration environments
Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to ensure correct pin count and terminal type. Confirm that the jack screw variant matches the assembly requirements. Check for RoHS compliance status if required by project specifications. Ensure compatibility with mating female connectors from the same Datamate series.
Selection Notes
Select this part when a vertical male header with integrated power and signal lines is required. The jack screw feature is critical for applications subject to mechanical stress. Consider the 24-position capacity for system density. Validate that the through-hole footprint aligns with the PCB design constraints.
Part Context
This component belongs to the Harwin Datamate Mix-Tek family, designed for high-density interconnections. The series combines signal and power contacts in a single housing. The M80 prefix indicates the specific product line within the broader connector portfolio. This model represents a specialized assembly with defined contact arrangements.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical pinout and mechanical dimensions. Consult Harwin engineering for cross-reference options if availability is an issue.
