Product Detailed Parameters
- Description：CONN HEADER VERT 26POS 2MM
- Series：Datamate S-Tek
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：26
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.106" (2.69mm)
- Overall Contact Length：-
- Insulation Height：0.319" (8.10mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Shielded
- Operating Temperature：-55°C ~ 121°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

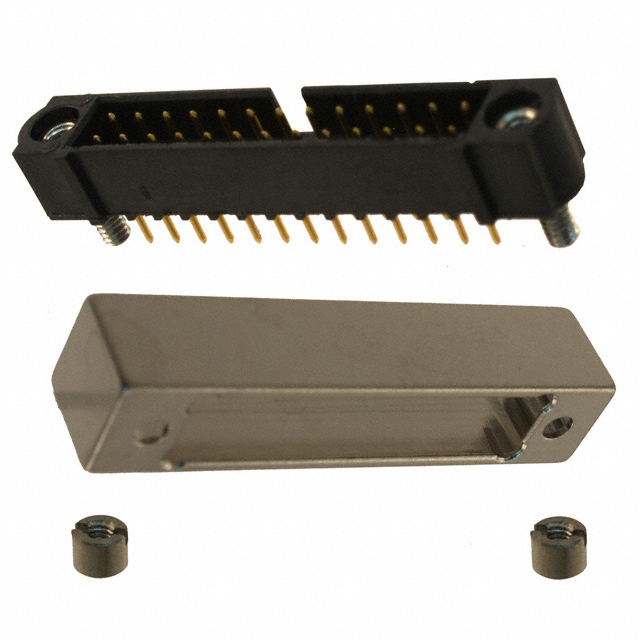

The M80-5T12605B1 is a Datamate J-Tek series rectangular connector from Harwin Inc., designed for power-to-board applications. It features a 2x13 configuration with 26 male pin contacts arranged in two rows. The component utilizes a 2.00 mm pitch and is constructed with gold-plated phosphor bronze contacts housed in black polyamide. Key specifications include a 2.7 mm vertical tail design, integrated shielding, and jackscrew locking mechanisms.
Feature Summary
- Integrated electromagnetic interference shielding for signal integrity
- Jackscrew locking mechanism for secure panel mounting
- Vertical through-hole termination for PCB integration
Applications
- Power distribution modules
- Industrial control systems
- Telecommunications equipment
Procurement Notes
Verify the obsolete status of this specific part number before procurement planning. Confirm compatibility with mating receptacles within the Datamate J-Tek family. Ensure that the required shielding and jackscrew configurations match the system design requirements to avoid integration issues.
Selection Notes
Select this component for applications requiring robust mechanical retention and EMI protection. The vertical tail design suits space-constrained board layouts. Verify that the mating environment supports the jackscrew interface and that the shielding continuity requirements are met by the assembly design.
Part Context
This connector belongs to the Datamate J-Tek series, known for high-density interconnects. The M80-5T12605B1 specifically addresses power delivery needs while maintaining signal integrity through shielding. It represents a specialized variant within the broader Harwin connector portfolio focused on industrial reliability.
Replacement Considerations
M80-5102605 is listed as a direct substitute. Verify mechanical and electrical compatibility before substitution due to potential differences in termination style or shielding configuration.
FAQ
What is the contact material for this connector?
The contacts are made of phosphor bronze with a gold finish.
Does this connector include shielding?
Yes, the M80-5T12605B1 includes integrated shielding for EMI protection.
