M80-5T12605MF

Overview

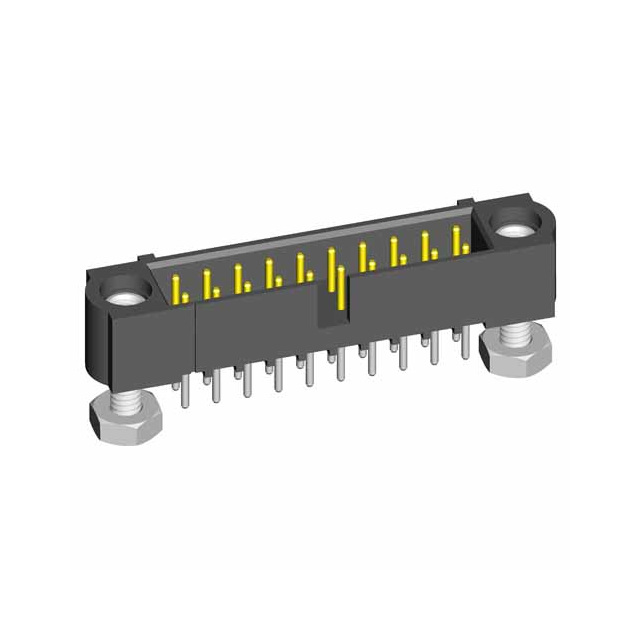

The M80-5T12605MF is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a 26-position configuration with a 2.00 mm (0.079 inch) pin spacing. Designed for through-hole mounting, this component utilizes solder termination to secure connections on printed circuit boards. The connector belongs to the high-reliability Datamate series, engineered for robust performance in demanding environments.

Feature Summary

• High-reliability construction suitable for mission-critical applications
• Compact form factor designed for space-constrained installations
• Secure through-hole solder termination for stable PCB attachment

Applications

• Industrial control systems requiring reliable connectivity
• Safety-critical electronic assemblies
• General-purpose board-to-board interconnections

Procurement Notes

Verify the exact suffix and material specifications against the official Harwin datasheet before ordering. Confirm that the through-hole footprint matches the target PCB design. Ensure compatibility with standard soldering processes for gold-plated phosphor bronze contacts. Check for any specific handling requirements during assembly.

Selection Notes

Select this model when a 26-position male header is required for through-hole implementation. The 2mm pitch allows for dense packing while maintaining reliable contact integrity. Consider the Datamate series benefits if high vibration resistance and durability are necessary for the application environment.

Part Context

This component is part of the Datamate J-Tek family from Harwin Inc., known for its ruggedness and reliability. The series is widely used in industrial and aerospace sectors where connection failure is not an option. The M80-5T12605MF specifically provides a male pin interface for mating with corresponding female sockets.

Replacement Considerations

Direct substitutes within the same Datamate J-Tek series with identical position counts and pitch should be evaluated. Verify mechanical dimensions and electrical ratings match exactly. Cross-reference with Harwin's official replacement guides for discontinued or updated variants.
