M80-5T13405ME

Overview

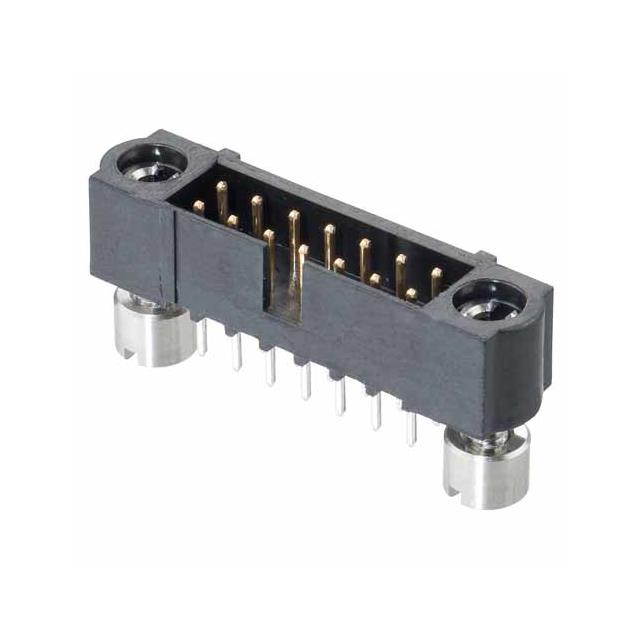

The M80-5T13405ME is a Datamate J-Tek series connector header manufactured by Harwin Inc. It features a vertical through-hole mounting style with 34 male pin contacts arranged in a dual-row configuration. The connector utilizes a 2.00mm (0.079 inch) mating pitch and row spacing. Constructed with phosphor bronze contacts featuring gold plating for the mating interface, it ensures reliable signal transmission. The housing is made of black polyphenylene sulfide (PPS) reinforced with glass fiber, offering UL94 V-0 flammability rating. Designed for board-to-board or board-to-cable applications, it supports a wide operating temperature range from -55°C to +125°C.

Feature Summary

• Dual-row male pin header design with 34 positions for high-density interconnects
• Vertical through-hole termination for secure PCB mounting
• Gold-plated phosphor bronze contacts ensure low contact resistance and durability
• Glass-filled PPS insulation provides thermal stability and mechanical strength

Applications

• Industrial control systems requiring robust signal connections
• Automotive electronics interfaces
• Military and aerospace equipment
• General purpose electronic assemblies

Procurement Notes

Verify the specific part number M80-5T13405ME against official Harwin documentation to confirm pin count and series compatibility. Ensure that mating connectors belong to the same Datamate J-Tek family with matching 2.00mm pitch. Check for required accessories such as keying slots or flanges if mechanical alignment is critical for the application environment.

Selection Notes

Select this component when a high-pin-count vertical header is needed for space-constrained designs. The 2.00mm pitch allows for dense routing while maintaining adequate spacing. Consider the through-hole mounting requirement and verify that the PCB layout accommodates the specified contact length and insulation height. Confirm that the operating temperature range meets the environmental demands of the end product.

Part Context

This component belongs to the Datamate J-Tek series, known for its push-pull locking mechanism and high reliability. The M80-5T prefix indicates a male header variant within the standard Datamate lineup. These connectors are widely used in harsh environments due to their rugged construction and certified performance standards, making them suitable for demanding industrial and transportation applications.

Replacement Considerations

Direct substitutes may include other Harwin Datamate J-Tek headers with identical 34-position configurations and 2.00mm pitch. Verify mechanical dimensions and locking mechanisms before substitution. Cross-model replacements require careful evaluation of mating interface compatibility and electrical specifications.
