M80-5T13642MC

Overview

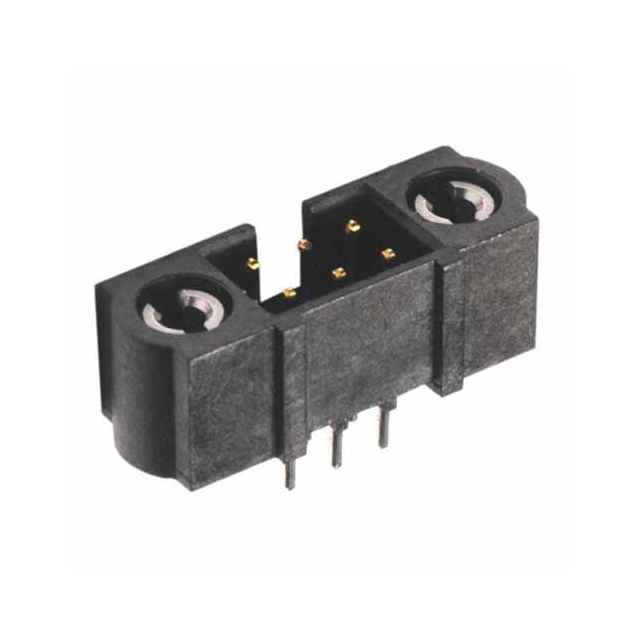

The M80-5T13642MC is a vertical board-to-board header from the Datamate J-Tek series, manufactured by Harwin Inc. It features a 6-position configuration with a 2.00mm pitch and dual rows. The connector utilizes push-pull locking for secure attachment and includes a four-wall shielded housing. Contact materials consist of phosphor bronze with gold plating on mating surfaces and tin on column surfaces. Rated for 2.2A at 120V, it operates within a temperature range of -55°C to 121°C. The black insulator is made of glass-filled polyphenylene sulfide (PPS) meeting UL94 V-0 flammability standards.

Feature Summary

• Push-pull locking mechanism ensures secure connection retention
• Four-wall shielded housing provides electromagnetic interference protection
• Gold-plated contacts offer reliable conductivity and corrosion resistance
• Glass-filled PPS insulation supports high thermal stability

Applications

• High-density electronic assemblies requiring robust mechanical retention
• Industrial control systems operating in demanding environments
• Medical equipment needing reliable signal transmission
• Automotive electronics with strict safety and durability requirements

Procurement Notes

Verify that the specific part number matches the required pin count and orientation. Confirm compatibility with mating connectors in the Datamate J-Tek family. Check for any updated environmental compliance certifications before finalizing procurement orders. Ensure storage conditions maintain component integrity prior to assembly.

Selection Notes

Select this component when a vertical, shrouded header with push-pull locking is required. Consider the 2.00mm pitch for space-constrained designs. Evaluate the current rating against circuit demands. Verify that the shielding requirements align with system noise immunity needs. Compare alternative series if different locking mechanisms are preferred.

Part Context

This connector belongs to the Datamate J-Tek line, known for high-reliability interconnects. The M80 prefix indicates the series generation. The suffix details position count and termination style. It is designed for board-to-board applications where vibration resistance and signal integrity are critical. The product remains active in the manufacturer's catalog.

Replacement Considerations

Direct substitutes must match the 6-position, 2-row, 2.00mm pitch specification. Verify identical locking mechanism and shielding type. Cross-reference with other Harwin Datamate variants only if functional equivalence is confirmed. Generic headers lack the specific locking and shielding features.
