M80-5T14242MC

Overview

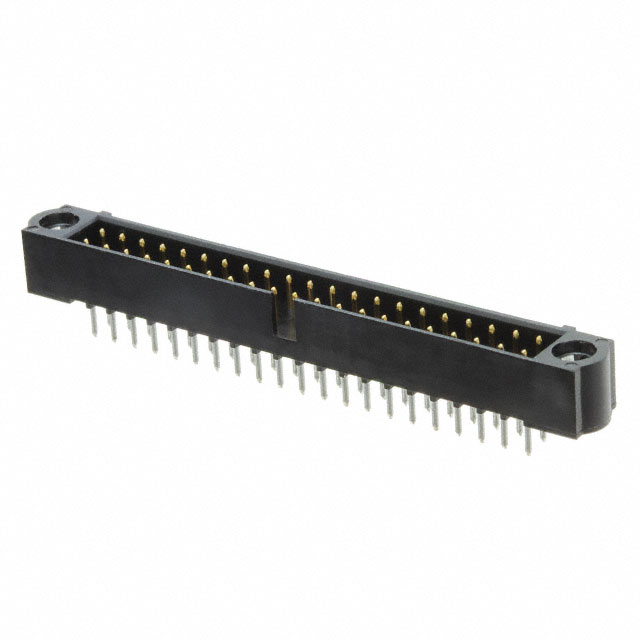

The Harwin M80-5T14242MC is a Datamate J-Tek series header connector designed for vertical PCB tail mounting. It features a 2+21 position configuration with a 2.00mm pitch and 2-row arrangement. The housing is constructed from black, glass-filled polyphenylene sulfide (PPS) rated UL94 V-0. Contacts are made of phosphor bronze with circular shapes, featuring gold plating on the mating interface and tin plating on the column. The component supports a rated current of 2.2A at 120V, operating within a temperature range of -55°C to 121°C.

Feature Summary

• Push-turn locking mechanism ensures secure connection stability
• Integrated keying slots prevent misalignment during mating
• Four-wall shielding provides electromagnetic interference protection
• Compatible with mating flanges for robust mechanical retention

Applications

• Industrial control systems requiring reliable power distribution
• Automotive electronic modules needing vibration resistance
• Military equipment demanding high environmental durability
• General-purpose board-to-board interconnects

Procurement Notes

Verify the specific suffix 'MC' against official Harwin documentation to confirm the exact plating thickness and material specifications. Ensure compatibility with the corresponding socket part number within the same Datamate J-Tek family. Confirm that the vertical PCB tail style matches the target assembly height requirements before finalizing procurement orders.

Selection Notes

Select this component when a vertical orientation with push-turn locking is required for space-constrained applications. The 2.00mm pitch allows for dense circuit layouts while maintaining adequate spacing. Consider the 2.2A current rating and 120V voltage limit to ensure safe operation under expected load conditions without exceeding thermal or electrical boundaries.

Part Context

This connector belongs to the Datamate J-Tek family, known for its compact size and high reliability in harsh environments. The M80-5T14242MC specifically addresses needs for vertical mounting with integrated shielding. It complements other Harwin connectors by offering a standardized interface for consistent performance across various industrial and commercial electronic assemblies.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Users must verify cross-compatibility with existing system designs if considering alternative suppliers. Any substitution requires rigorous testing to match the original locking mechanism and dimensional tolerances.
