M80-5T15042MC

Overview

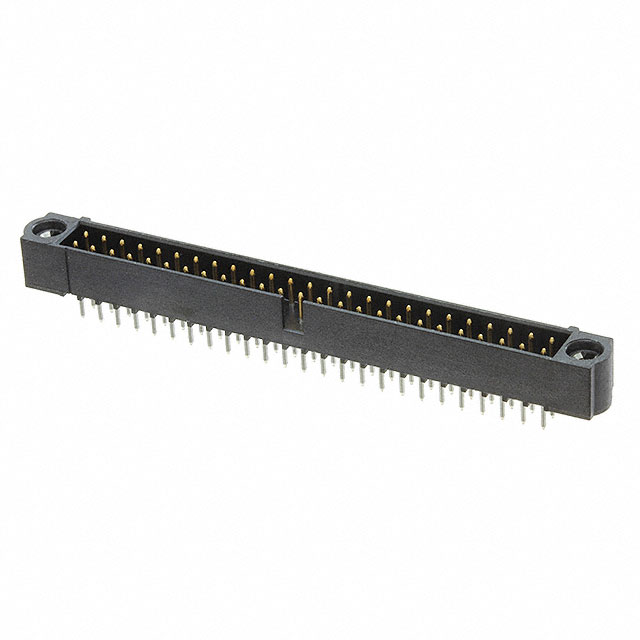

The Harwin M80-5T15042MC is a Datamate J-Tek power-to-the-board connector featuring a 2+25 position male vertical PC tail configuration. It utilizes a 2 mm pitch and supports through-hole straight mounting. The connector is designed for robust power delivery applications, ensuring reliable electrical connections in demanding environments.

Feature Summary

• Vertical PC tail design for direct board integration
• Male contact type for secure mating
• Datamate J-Tek series reliability

Applications

• Power distribution systems
• Industrial electronics
• Automotive control units

Procurement Notes

Verify the specific pin count and tail length requirements against your PCB layout before ordering. Confirm that the vertical orientation matches your assembly constraints. Ensure compatibility with mating sockets within the same Datamate J-Tek family to guarantee proper interface performance.

Selection Notes

Select this component when high-current power delivery is required alongside signal transmission. The vertical profile suits space-constrained boards where horizontal headers are unsuitable. Consider the 2 mm pitch for standard density needs and verify thermal management capabilities for continuous operation.

Part Context

This part belongs to the Datamate J-Tek family, known for high-reliability interconnects. It serves as a power header solution, distinct from signal-only connectors. The vertical tail format allows for efficient use of board real estate while maintaining structural integrity during mating cycles.

Replacement Considerations

Check for exact pin count matches (2+25) and identical pitch specifications. Verify that alternative parts support the same vertical PC tail mounting style. Ensure voltage and current ratings meet or exceed original requirements for safe operation.
