Product Detailed Parameters
- Description：DATAMATE 2-ROW MIX-TEK MALE VERT
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：-
- Number of Positions：8 (4 + 4 Power)
- Number of Rows：-
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.177" (4.50mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy, Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A, 20A
- Voltage Rating：800VAC/DC
Download product information
Overview

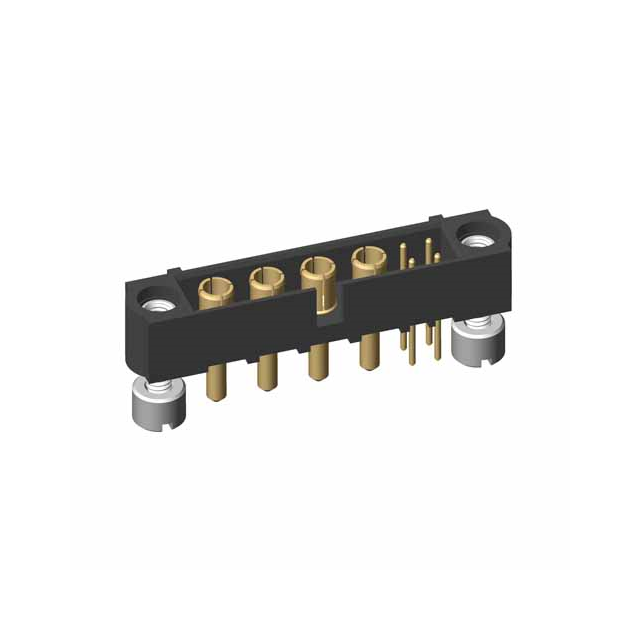

The M80-5T20405M3-04-332-00-000 is a Harwin Datamate Mix-Tek board connector featuring a 6-contact configuration arranged in two rows. It is a male receptacle designed for vertical through-board mounting with solder termination. The component utilizes mixed signal and power contacts, incorporating jackscrews for secure fastening. Key electrical specifications include a contact resistance of 25 mΩ and a durability rating of 500 mating cycles. The insulator is constructed from black glass-filled polyphenylene sulphide.
Feature Summary
- Integrates mixed signal and power contacts within a single compact housing
- Employs threaded jackscrews to ensure secure mechanical retention
- Designed for vertical through-board installation via solder termination
Applications
- High-reliability industrial control systems
- Motor control cabinet interconnections
- Embedded systems requiring mixed signal/power connections
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to confirm pinout, plating, and jack screw type. Ensure the selected variant matches the required vertical orientation and solder termination method. Cross-reference the contact count and row configuration to prevent mismatching during assembly.
Selection Notes
Select this component when a mixed-signal solution is required in a space-constrained vertical application. The jackscrew feature provides superior vibration resistance compared to standard latches. Verify that the PCB layout accommodates the specified body dimensions and solder pad requirements for reliable termination.
Part Context
This part belongs to the Harwin Datamate Mix-Tek family, which combines signal and power contacts in a single connector system. The series is engineered for high-density applications where both data transmission and power delivery are necessary within a small footprint.
Replacement Considerations
Direct substitutes must match the 6-pin mixed configuration, vertical orientation, and jackscrew fastening mechanism. Verify compatibility with existing PCB footprints and mating housing dimensions before substitution.
