Product Detailed Parameters
- Description：CONN HEADER VERT 22POS 2MM
- Series：Datamate Mix-Tek
- Mfr：Harwin Inc.
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：22 (16 + 6 Coax)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.173" (4.40mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：-
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

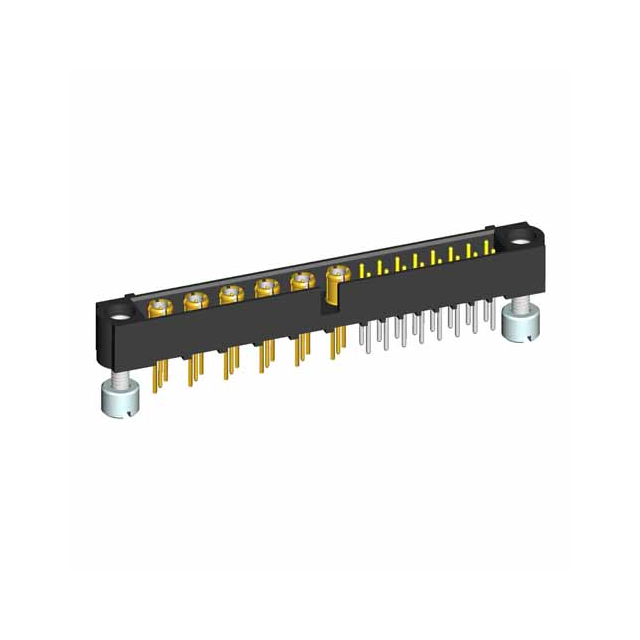

The M80-5T21642M3-06-312-00-000 is a Datamate J-Tek male header connector manufactured by Harwin Inc. It features a vertical through-hole mounting style with a 2-row configuration and a 2 mm pitch. The component provides 22 positions, specifically designed as a mix-teck solution comprising 16 standard signal pins and 6 coaxial contacts. This part is currently classified as obsolete and is no longer in active production.
Feature Summary
- Combines standard signal transmission with integrated coaxial connectivity within a single housing
- Vertical orientation facilitates direct board insertion for space-constrained designs
- Utilizes a robust two-row layout to maximize contact density on the PCB
Applications
- Mixed-signal electronic assemblies requiring simultaneous data and RF transmission
- Industrial control systems integrating high-frequency components
- Telecommunications equipment utilizing compact interconnect solutions
Procurement Notes
This specific part number is officially listed as obsolete by the manufacturer. Procurement must focus on verifying the availability of remaining stock from authorized distributors or secondary market suppliers. Buyers should confirm the authenticity of the components and check for valid replacement alternatives within the same Datamate series before finalizing acquisition decisions.
Selection Notes
Engineers selecting this component should prioritize its unique mix-teck capability, which consolidates signal and coaxial lines into one footprint. The vertical form factor is suitable for applications where board height allows for through-hole insertion. Due to the obsolete status, alternative sourcing strategies or redesigns using current generation connectors are strongly recommended for new production runs.
Part Context
This connector belongs to the Datamate J-Tek family, known for high-density interconnects. The M80-5T series specifically denotes male headers with mixed signal and coaxial options. Harwin Inc. produces these components to support complex electronic architectures that demand reliable performance in compact spaces, particularly where RF signals coexist with standard digital or power lines.
Replacement Considerations
As the M80-5T21642M3-06-312-00-000 is obsolete, engineers must identify compatible substitutes from the same Datamate J-Tek line. Verification of pinout compatibility, mechanical dimensions, and electrical ratings is essential when selecting an equivalent part from current manufacturing inventories.
