M80-5T22442M3-03-312-00-000

Overview

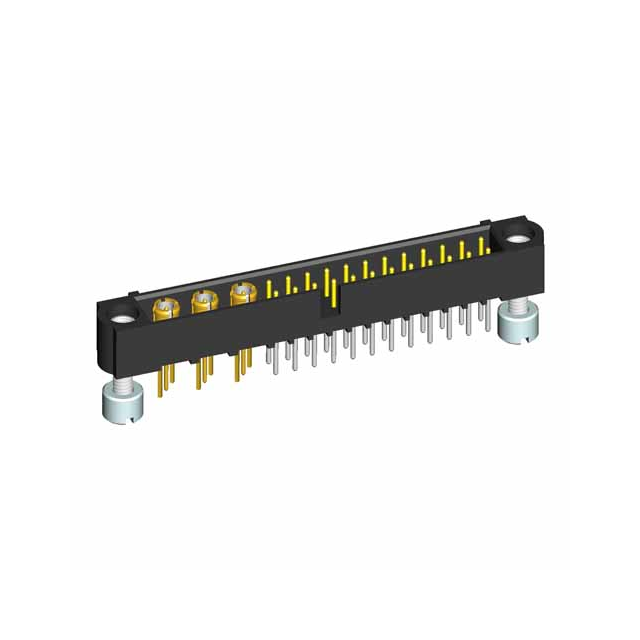

The M80-5T22442M3-03-312-00-000 is a Datamate Mix-Tek header manufactured by Harwin. It features a vertical surface-mount (SMD/SMT) configuration with a 2 mm pitch and 27 positions arranged in a mixed gender layout. The connector utilizes phosphor bronze contacts with gold plating for reliable signal transmission. Designed for high-reliability applications, it operates within a temperature range of -55°C to +125°C. The housing is constructed from black Polyphenylene Sulfide (PPS) material, rated UL 94 V-0 for flammability. This component supports secure board-to-board connections with integrated jack screws.

Feature Summary

• Datamate Mix-Tek series enables mixed gender mating configurations for flexible system integration.
• Vertical surface-mount design facilitates automated assembly and compact PCB layouts.
• Integrated jack screw mechanism ensures robust mechanical retention and vibration resistance.
• Gold-plated phosphor bronze contacts provide durable electrical performance in demanding environments.

Applications

• Industrial control systems requiring high reliability
• Medical equipment with strict safety standards
• Automotive electronics subject to vibration
• Aerospace and defense communication modules

Procurement Notes

Verify the complete part number including all suffixes to ensure correct pin count, orientation, and termination style. Confirm RoHS compliance status through official manufacturer documentation prior to ordering. Check for alternative packaging options if specific reel quantities are required for production lines. Ensure compatibility with mating sockets from the same Datamate family to maintain proper alignment and electrical integrity.

Selection Notes

Select this component when a vertical, mixed-gender connector with mechanical locking is required. The 2 mm pitch allows for dense I/O arrangements on space-constrained boards. Consider the operating temperature range and current ratings against application loads. Verify that the surface-mount footprint matches the target PCB design guidelines for optimal solder joint formation.

Part Context

This part belongs to the Harwin Datamate J-Tek and Mix-Tek families, known for their modular design and high cycle life. The Mix-Tek variant specifically allows for mixed male and female pins within a single housing, offering design flexibility. The M80 prefix indicates the standard Datamate form factor, widely used in rugged electronic applications.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific mixed-gender configuration. Cross-referencing requires matching pitch, position count, and locking mechanism. Generic equivalents may lack the verified jack screw retention and mixed gender capability.
