M80-6650442

Overview

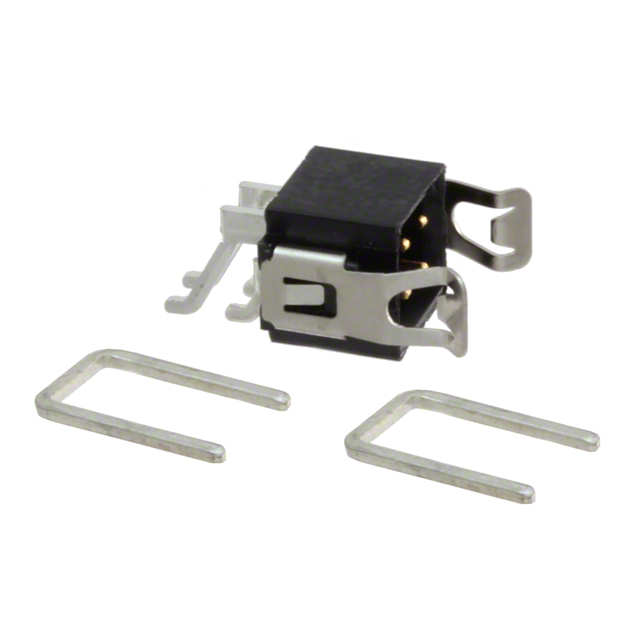

The Harwin M80-6650442 is a Datamate L-Tek series pin header connector featuring a 4-position, 2-row configuration with a 2.00mm pitch. Designed for surface mount right-angle installation, it utilizes brass contacts with gold plating and PPS insulation rated UL94 V-0. The component supports board-to-board or cable connections, operating within a temperature range of -55°C to +125°C, with a current rating of 3A and voltage rating of 800V.

Feature Summary

• Datamate L-Tek series interconnect system
• Surface mount right-angle termination
• Shrouded housing design
• Gold-plated brass contacts

Applications

• Board-to-board connections
• Wire-to-board connections
• General electronic assemblies

Procurement Notes

Verify the specific manufacturer part number against official Harwin documentation to ensure accuracy. Confirm that the surface mount right-angle form factor matches the target PCB layout requirements. Check for RoHS compliance status in the latest datasheet before finalizing procurement specifications.

Selection Notes

Select this component when a low-profile, right-angle surface mount solution is required for compact designs. Ensure the 2.00mm pitch aligns with mating connector standards. Validate that the 3A current rating meets the application's electrical load requirements under specified operating temperatures.

Part Context

This connector belongs to the Harwin Datamate L-Tek family, known for high-density interconnect solutions. It serves as a male pin header variant within the broader M80-66x series, offering reliable performance in space-constrained environments requiring robust mechanical locking and stable electrical connections.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
