M80-6650842

Overview

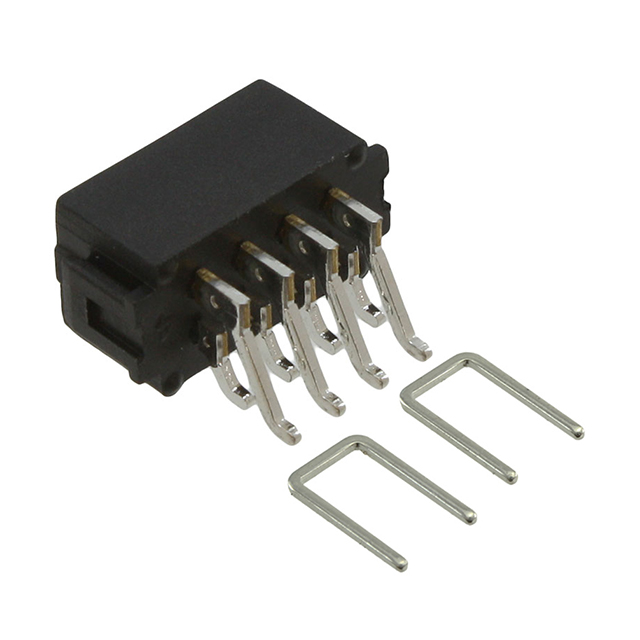

The Harwin M80-6650842 is a Datamate L-Tek series header assembly featuring an 8-position, dual-in-line configuration with two rows. It utilizes a 2 mm pitch and operates at right angles for surface mount technology applications. The component incorporates male pin contacts made of brass with gold plating, housed in black polyphenylene sulfide (PPS). It supports a current rating of 3 A and functions within a temperature range of -55 C to +125 C.

Feature Summary

• Shrouded design provides alignment and protection for the contact array.
• Gold-plated brass pins ensure reliable electrical conductivity and corrosion resistance.
• Polyphenylene sulfide housing offers high thermal stability and UL 94 V-0 flammability rating.

Applications

• High-reliability industrial equipment interconnects
• Automotive electronic control unit connections
• Medical device signal transmission

Procurement Notes

Verify that the specific part number matches the required Datamate L-Tek specifications. Confirm the surface mount orientation and pin count align with the target PCB layout. Ensure compatibility with mating sockets from the same connector family to maintain mechanical integrity and electrical performance standards.

Selection Notes

Select this component when a right-angle, shrouded male header is required for space-constrained designs. The 2 mm pitch allows for dense circuit board layouts while maintaining robust connection capabilities. Consider the gold plating for environments requiring enhanced contact reliability over standard tin finishes.

Part Context

This part belongs to the Datamate L-Tek product line by Harwin, designed for demanding applications. The series is known for its high durability and secure latching mechanisms when paired with appropriate housings. It serves as a critical interface component in systems requiring stable signal and power transmission.

Replacement Considerations

Direct substitutes must match the 8-position, 2-row, 2 mm pitch, and right-angle SMT form factor. Verify that alternative components offer identical contact material and plating specifications to ensure consistent electrical performance and environmental resistance.
