M80-6651442

Overview

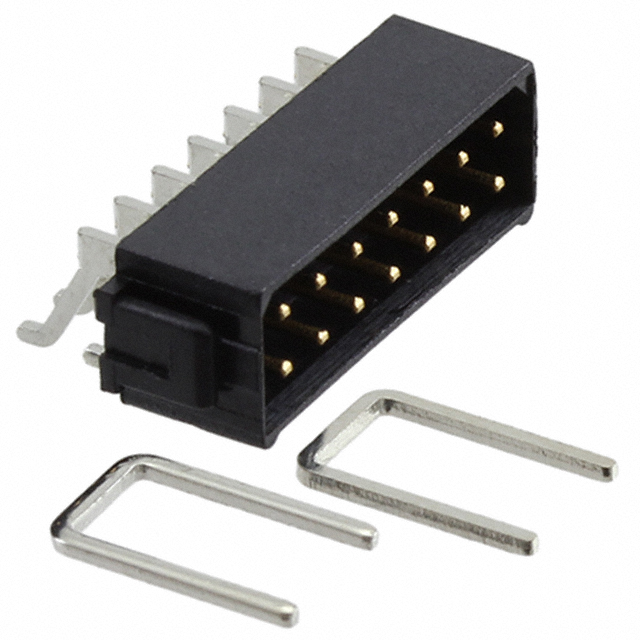

The Harwin M80-6651442 is a Datamate L-Tek series connector header designed for surface mount technology. It features a 14-position configuration arranged in two rows with a 2 mm pitch. The male contacts are constructed from brass and gold-plated, suitable for reliable signal transmission. The housing is made of black polyamide (PA), providing durability and insulation. This straight-mount component supports board-to-board or cable connections without integrated latches.

Feature Summary

• Surface mount right-angle design for compact PCB integration
• Male pin configuration with gold-plated brass contacts
• Polyamide housing material for thermal stability

Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic equipment assembly

Procurement Notes

Verify the specific datasheet revision to confirm RoHS compliance status and exact dimensional tolerances. Ensure the absence of latches aligns with mechanical retention requirements. Cross-reference the supplier's lead time against production schedules. Confirm that the surface mount footprint matches the target PCB design constraints before finalizing procurement orders.

Selection Notes

Select this part when a non-latched, right-angle male header is required for space-constrained applications. The 2 mm pitch allows for dense circuit layouts. Verify that the surface mount termination method is compatible with the assembly process. Consider the lack of mechanical locking if vibration resistance is critical for the deployment environment.

Part Context

This component belongs to the Datamate L-Tek family, which offers modular connectivity solutions. The M80-6651442 specifically addresses needs for horizontal surface mounting. It complements female counterparts within the same series to form complete mating pairs for power and signal distribution in industrial and commercial electronics.

Replacement Considerations

Compatible substitutes include other Harwin Datamate L-Tek headers with identical 14-position, 2-row, right-angle specifications. Ensure any alternative maintains the same 2 mm pitch and surface mount termination style. Verify contact plating and housing material compatibility for environmental resilience.
