Product Detailed Parameters
- Description：CONN HEADER SMD R/A 16POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Plug
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

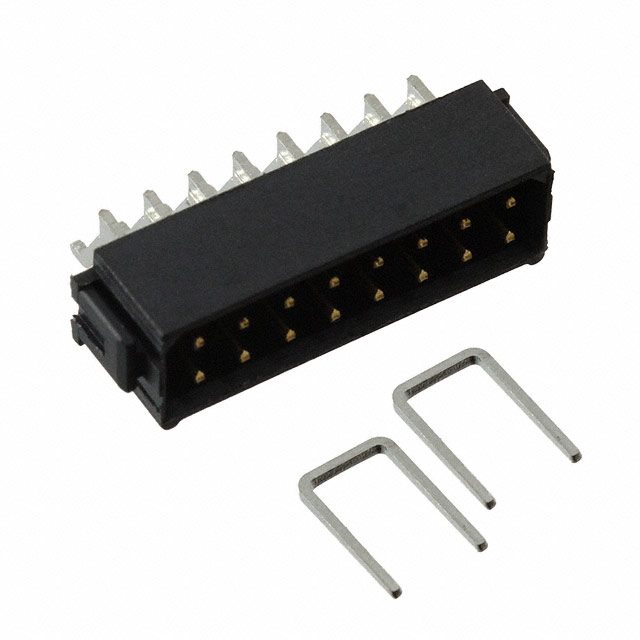

The M80-6651642 is a Datamate L-Tek male header connector featuring 16 positions in a dual-row configuration. It utilizes a 2.00mm (0.079 inch) mating pitch and is designed for surface mount, right-angle installation. The contacts are gold-plated with a thickness of 29.5µin (0.75µm), while the posts are tin-plated. Rated for 120V and 3A, it operates within a temperature range of -55°C to +125°C. The housing is black PPS with glass fiber reinforcement, ensuring UL94 V-0 flammability.
Feature Summary
- Datamate L-Tek series design with push-pull locking mechanism
- Right-angle surface mount termination for compact board layouts
- Gold-plated circular contacts for reliable signal transmission
- Shielded four-wall housing construction
Applications
- Board-to-board interconnections
- Cable-to-board connections
- Industrial control systems
- Automotive electronics
Procurement Notes
Verify the specific ordering suffix to confirm contact finish thickness and post plating specifications. Ensure the selected variant matches the required mounting style and pin count. Cross-reference the datasheet for compatible mating receptacles and accessories. Confirm that the component meets the necessary environmental and electrical ratings for the target application.
Selection Notes
Select this component for applications requiring high-density interconnects with right-angle routing capabilities. The L-Tek series offers robust mechanical retention through its push-pull lock. Consider the 2.00mm pitch when planning trace spacing and board real estate. Evaluate the thermal performance limits against the operating environment requirements.
Part Context
This part belongs to the Harwin Datamate L-Tek family, known for its versatility in mixed-signal applications. The L-Tek line combines data and power capabilities in a single connector system. The M80-6651642 specifically addresses needs for horizontal surface mount configurations with multiple rows.
Replacement Considerations
Compatible substitutes include other Harwin Datamate L-Tek headers with matching pin counts and mounting styles. Verify that any alternative maintains the same 2.00mm pitch and locking mechanism. Check for identical voltage and current ratings before substitution.
