Product Detailed Parameters
- Description：CONN HEADER SMD R/A 12POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.235" (5.97mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

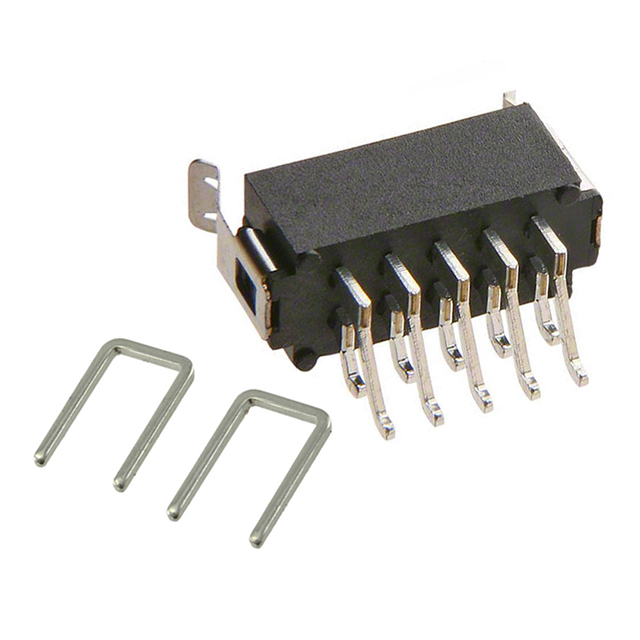

The Harwin M80-6661242 is a Datamate L-Tek series PCB header featuring a right-angle, surface-mount design with a 2mm pitch. It comprises 12 contacts arranged in a dual-row configuration, utilizing brass pins with gold plating for reliable signal transmission. The connector supports board-to-board and wire-to-board applications, rated for 3A current and 120V voltage. Constructed with a black PPS housing, it operates within a temperature range of -55°C to +125°C and includes a cover for protection.
Feature Summary
- Datamate L-Tek series interconnect system
- Right-angle surface mount termination
- Gold-plated brass contact pins
- Integrated protective cover
Applications
- Board-to-board connections
- Wire-to-board assemblies
- Industrial control systems
- Automotive electronics
Procurement Notes
Verify the specific part number M80-6661242 against official Harwin documentation to ensure compatibility with mating sockets. Confirm that the required pin count, row configuration, and mounting style match the target PCB layout. Check for any updated revision codes or suffixes that may indicate changes in packaging or material specifications before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, high-density connection is required for space-constrained designs. The right-angle orientation facilitates vertical stacking or perpendicular routing. Ensure the mating interface supports the 2mm pitch and dual-row format. Consider the operating temperature range and current rating to verify suitability for the intended electrical environment and mechanical stress conditions.
Part Context
This component belongs to the Datamate L-Tek family, known for robust performance in demanding environments. The M80-666 prefix indicates a header variant within the broader Datamate ecosystem. It is designed to mate with corresponding Datamate L-Tek sockets, providing a secure locking mechanism and reliable connectivity for critical electronic applications across various industries.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source data. Verify compatibility with existing mating connectors before considering alternative suppliers or generic equivalents. Consult Harwin technical support for validated cross-reference information if direct replacement is necessary.
