M80-6661442

Overview

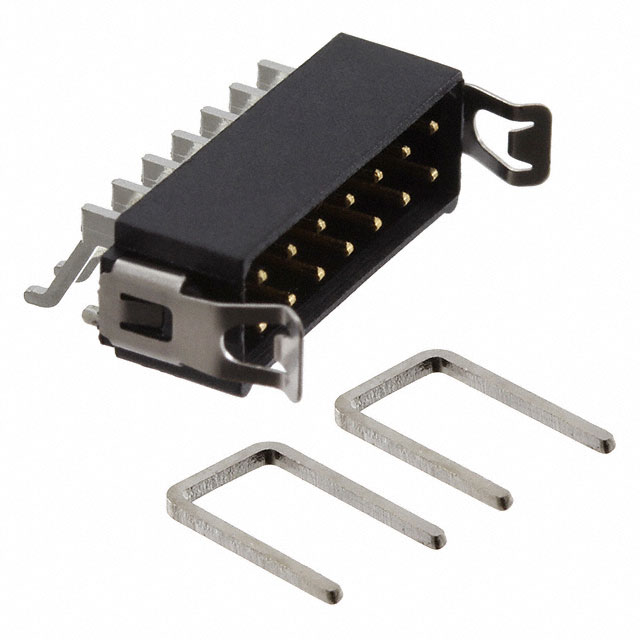

The M80-6661442 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features a 14-position, dual-row configuration with a 2.00mm (0.079 inch) pitch. Designed for surface mount technology, the assembly utilizes right-angle termination for board-to-board or wire-to-board applications. The contacts are gold-plated brass pins housed in black polyamide insulation rated UL94 V-0. The unit incorporates a latch mechanism for secure mating and supports a current rating of 3A at 360V.

Feature Summary

• Surface mount right-angle construction for compact PCB integration
• Dual-row 14-position layout with 2.00mm spacing
• Gold-plated brass contacts for reliable conductivity
• Integrated latch system for positive connection retention

Applications

• Board-to-board interconnects
• Wire-to-board connections
• Industrial control systems
• Automotive electronics modules

Procurement Notes

Verify the specific datasheet revision to confirm RoHS compliance status and material declarations prior to procurement. Ensure that the surface mount footprint matches the manufacturer's recommended land pattern to guarantee solder joint integrity during reflow processes. Confirm that the latch orientation aligns with the mechanical constraints of the final assembly design.

Selection Notes

Select this component when a low-profile, right-angle SMT solution is required for high-density signal routing. The dual-row format maximizes pin count within a minimal footprint. Verify that the 3A current rating and 360V voltage limit meet the circuit requirements. Consider the latch feature if vibration resistance is critical for the application environment.

Part Context

This part belongs to the Datamate L-Tek series, which provides versatile interconnection solutions for space-constrained environments. The M80-6661442 specifically addresses the need for robust, latched connections in surface mount configurations. It complements other components in the Harwin ecosystem designed for industrial and automotive sectors requiring reliable performance.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Cross-referencing requires matching the 2.00mm pitch, 14-pin dual-row layout, right-angle SMT mounting style, and latching mechanism. Compatibility depends on verifying exact mechanical dimensions and electrical ratings against alternative suppliers' datasheets.
