M80-6663442

Overview

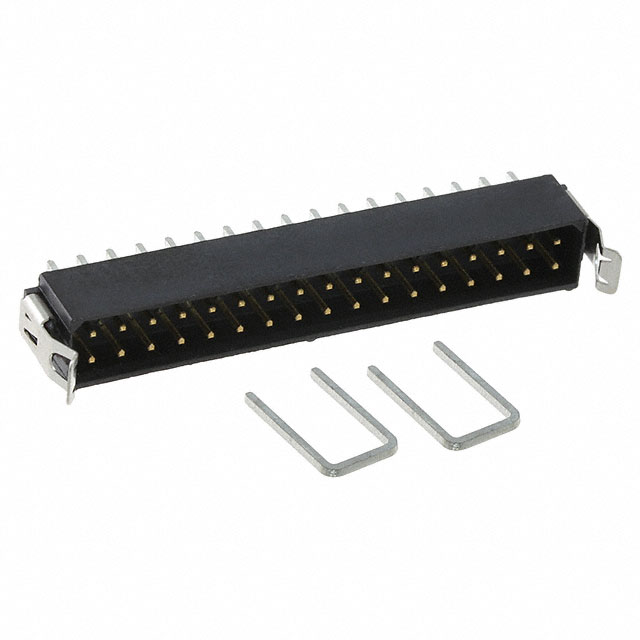

The M80-6663442 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features a 34-position configuration arranged in two rows with a 2.00mm pitch. Designed for surface mount technology, it utilizes a right-angle installation style. The contacts are brass with gold plating, while the posts are tin-plated. Rated for 2.2A at 800V, it employs a latch lock mechanism and includes an integrated stress relief clamp. The housing is black PPS with glass fiber reinforcement, rated UL94 V-0, and operates between -55°C and 125°C.

Feature Summary

• Integrated mechanical latch system for secure mating retention
• Built-in stress relief clamp to protect solder joints from cable strain
• Right-angle surface mount design for compact board space utilization

Applications

• Board-to-board interconnections requiring high-density I/O
• Wire-to-board connections needing robust strain relief
• Industrial control modules with limited vertical clearance

Procurement Notes

Verify that the specific part number matches the required 34-position count and right-angle orientation. Confirm the presence of the integrated latch mechanism if mechanical retention is critical for the assembly. Ensure the surface mount footprint aligns with the PCB layout specifications. Check for any specific handling requirements related to the SMT process for this component series.

Selection Notes

Select this component when a high-pin-count horizontal header with built-in strain relief is necessary. The latch feature distinguishes it from standard headers, providing enhanced mechanical stability. Consider the right-angle profile for space-constrained designs where vertical height is limited. Verify compatibility with mating sockets from the same Datamate L-Tek family to ensure proper engagement.

Part Context

This connector belongs to the Datamate L-Tek series, known for its modular design and high reliability. The M80-666 base indicates a male horizontal SMT assembly within the Harwin portfolio. This series supports various pin counts and configurations, offering flexibility for diverse electronic applications requiring robust connectivity solutions.

Replacement Considerations

Direct substitutes include other Harwin M80-666 series headers with matching 34 positions and right-angle SMT mounting. Ensure replacement parts maintain the same latch type and stress relief features. Cross-model compatibility requires verifying identical pitch and housing dimensions.
