M80-6670642

Overview

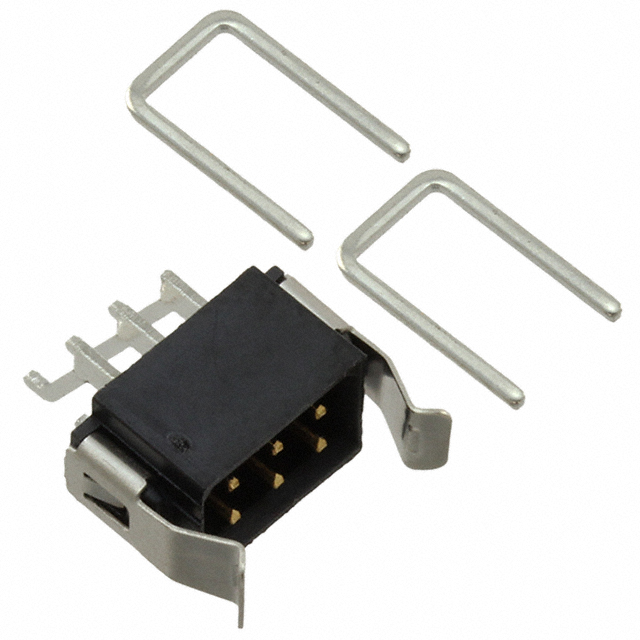

The M80-6670642 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features a 3+3 pin configuration with a 2.00mm pitch and horizontal orientation. The connector utilizes friction latch locking and supports surface mount termination. Electrical ratings include a current capacity of 2.2A and a voltage rating of 800V. Contact finishes consist of gold on the mating interface and tin on the posts, with thicknesses of 0.75µm and 3.00µm respectively. The housing is constructed from black PPS material rated UL94 V-0, operating within a temperature range of -55°C to 125°C.

Feature Summary

• Horizontal 3+3 pin layout for compact board-to-board or wire-to-board connections
• Friction latch mechanism ensures secure mating without additional fasteners
• Dual contact finish combining gold plating for reliable signal transmission and tin for solderability

Applications

• Industrial control systems requiring high voltage isolation
• Automotive electronics harnesses
• Medical device interconnects

Procurement Notes

Verify component status as this part may be classified as obsolete in certain distributor catalogs. Confirm availability through official Harwin channels or authorized partners. Ensure compatibility with mating sockets from the same Datamate L-Tek series. Check for updated lifecycle notifications before finalizing design-in decisions.

Selection Notes

Select this model for applications demanding horizontal mounting space efficiency. The 800V rating distinguishes it from lower-voltage variants. Verify that the friction latch style meets assembly requirements compared to push-pull alternatives. Ensure PCB footprint matches the surface mount specification for proper reflow soldering profiles.

Part Context

This component belongs to the Datamate L-Tek family, designed for high-density interconnect solutions. It complements other headers like the M80-666 series but differs in pin count and orientation. The specific 3+3 configuration offers a balanced solution for moderate channel counts where vertical height constraints are critical.

Replacement Considerations

M80-6670642 is listed as obsolete. Potential substitutes include M80-6670642 equivalents from the same series if available, or redesigning with active parts like M80-6660442 for different pin counts. Consult Harwin for current active replacements.
