M80-6670842

Overview

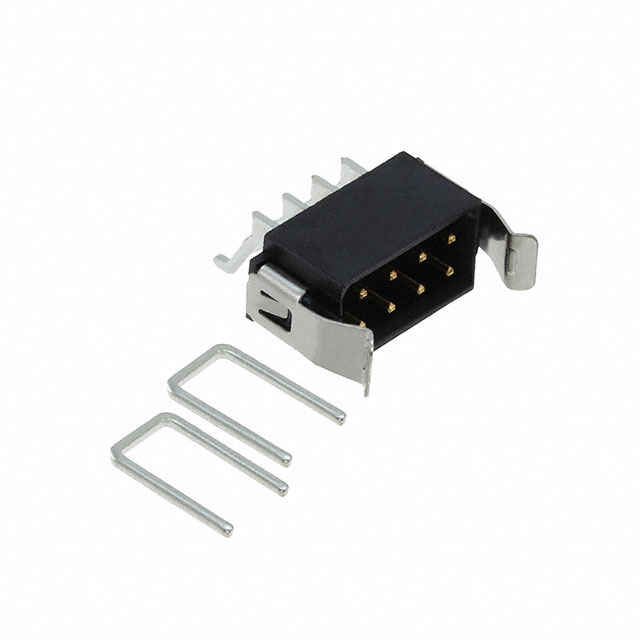

The Harwin M80-6670842 is a Datamate L-Tek male header connector featuring an 8-position, dual-in-line configuration. It utilizes a 2 mm (0.079 in) pitch with a 2 mm row spacing across two rows. Designed for surface-mount installation at a right angle, the component employs solder termination and gold-plated brass contacts. The housing is constructed from black polyphenylene sulfide (PPS), offering UL 94 V-0 flammability rating. It operates within a temperature range of -55°C to +125°C and supports a current rating of 3 A.

Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity without loss.
• Shrouded design provides mechanical protection and alignment during mating.
• Unlatched configuration allows for direct insertion without locking mechanisms.

Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic equipment requiring high-density mounting

Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact plating thickness and material specifications. Ensure compatibility with automated surface-mount assembly processes due to the SMD right-angle form factor. Cross-reference the RoHS compliance status with the latest manufacturer declaration prior to procurement.

Selection Notes

Select this model for applications requiring a compact, high-density vertical interface with robust electrical performance. The 2 mm pitch balances space efficiency with adequate current carrying capacity. Consider the unlatched nature for environments where vibration resistance is managed by other structural means rather than connector locking features.

Part Context

This component belongs to the Datamate L-Tek series, known for its high reliability and miniaturization. It is part of the broader M80 product family, which offers various pin counts and configurations. The L-Tek variant specifically emphasizes low-profile design and reliable signal transmission in dense PCB layouts.

Replacement Considerations

M80-6650842: Similar 8-position DIL male header but may differ in latch configuration or specific plating details. Verify dimensional tolerances and mating force characteristics before substitution.
