M80-6672042

Overview

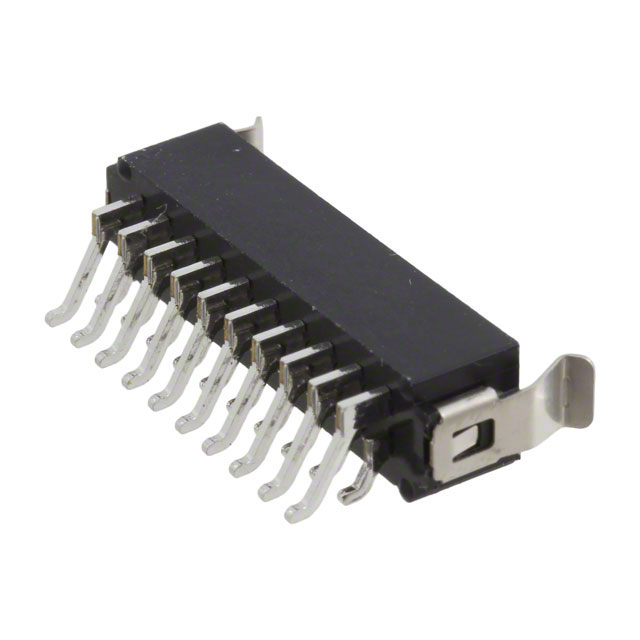

The Harwin M80-6672042 is a Datamate L-Tek series rectangular connector header designed for surface mount technology. It features a horizontal right-angle configuration with 20 positions arranged in two rows. The connector utilizes a 2.00mm (0.079 inch) mating pitch and incorporates male pin contacts. The housing is constructed from black polyamide material, providing UL94 V-0 flammability rating. This component is intended for board-to-board or cable applications requiring robust SMD attachment.

Feature Summary

• Horizontal right-angle surface mount design for compact PCB integration
• Datamate L-Tek series locking mechanism for secure mating
• Male pin contact configuration with gold plating for reliable conductivity
• Polyamide insulation housing with UL94 V-0 flame retardancy

Applications

• Board-to-board interconnects in industrial equipment
• Cable-to-board connections in automotive systems
• General electronic assemblies requiring high-density I/O
• Military and aerospace control modules

Procurement Notes

Verify the specific datasheet revision to confirm RoHS compliance status and exact dimensional tolerances before finalizing the design. Ensure that the PCB footprint matches the manufacturer's recommended land pattern for right-angle SMD headers. Cross-reference the mating partner part numbers within the Datamate L-Tek family to guarantee mechanical compatibility and correct polarization keying options are selected for the assembly.

Selection Notes

Select this component when a low-profile, right-angle connection is required for space-constrained designs. The Datamate L-Tek series offers a balance of durability and electrical performance suitable for harsh environments. Consider the 2.00mm pitch and 20-position count against available board real estate. Verify that the surface mount termination method aligns with the manufacturing process capabilities and thermal profiles used in the production line.

Part Context

This part belongs to the Datamate L-Tek family, which is characterized by its push-pull locking system and high reliability. The L-Tek series typically employs brass contacts and polyamide housings, distinguishing it from the J-Tek series which often uses beryllium copper and PPS materials. The M80-667 prefix indicates a horizontal SMD header variant within the broader M80 connector ecosystem produced by Harwin Inc.

Replacement Considerations

M80-6672042-ND
