M80-6810645

Overview

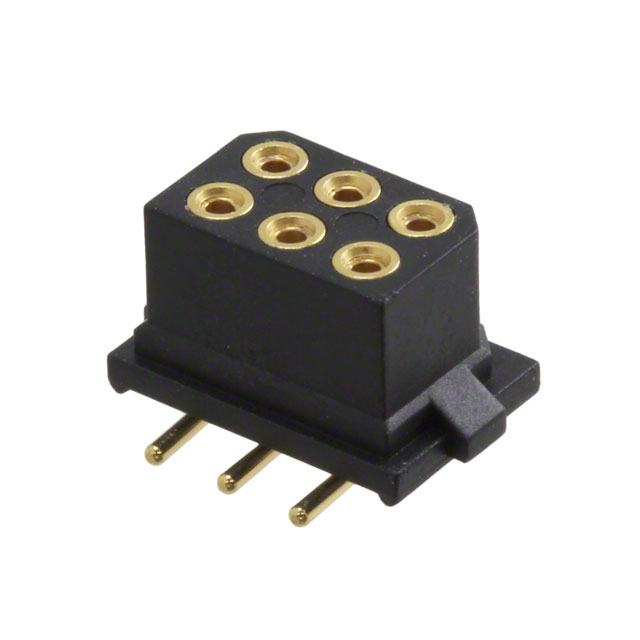

The M80-6810645 is a Datamate L-Tek series rectangular connector header designed for surface mount technology. It features a dual in-line configuration with 6 positions (3+3) and a 2 mm pitch. The component utilizes female socket contacts with gold plating, suitable for automated pick-and-place assembly processes.

Feature Summary

• Designed for high-density surface mount applications
• Supports automated pick-and-place manufacturing
• Features gold-plated female contacts for reliable signal transmission

Applications

• Automated PCB assembly lines
• High-density electronic interconnect systems
• Industrial control modules

Procurement Notes

Verify the specific suffix 'P' if pick-and-place cap compatibility is required, as standard versions may differ. Confirm surface mount orientation and contact plating specifications against the official datasheet to ensure compatibility with automated assembly equipment and environmental requirements.

Selection Notes

Select this component when surface mount installation is mandatory for space-constrained designs. Ensure the mating connector matches the Datamate L-Tek female socket interface. Verify that the gold plating meets corrosion resistance needs for the operating environment.

Part Context

This part belongs to the Harwin Datamate L-Tek family, which specializes in robust, high-reliability connectors for demanding environments. The L-Tek series distinguishes itself through optimized surface mount capabilities and durable construction, serving as a key solution for modern electronics manufacturing.

Replacement Considerations

M80-6810645P is a related variant featuring a pick-and-place cap. Verify mechanical compatibility and functional equivalence before substitution.
