M80-6811401

Overview

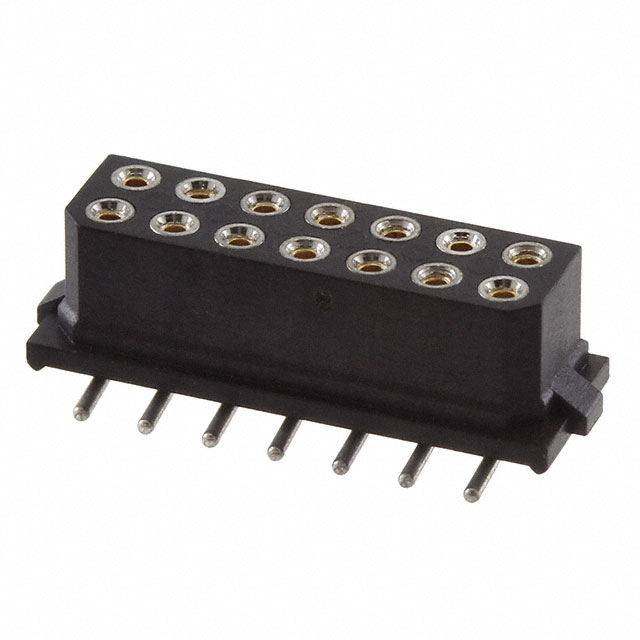

The Harwin M80-6811401 is a Datamate L-Tek series connector assembly featuring a 7+7 dual in-line (DIL) configuration with 14 total positions. It utilizes female socket contacts designed for vertical through-hole mounting on printed circuit boards. The component employs a 2.00mm pitch and operates within a temperature range of -55°C to +125°C. Insulation is constructed from black polyamide, while contacts are gold-plated brass. This receptacle is engineered for reliable signal transmission in compact electronic layouts.

Feature Summary

• Vertical DIL female header design for space-constrained PCB applications
• Gold-plated brass contacts ensure low resistance and corrosion resistance
• Polyamide insulation provides thermal stability up to 125°C
• Through-hole termination supports standard surface-mount manufacturing processes

Applications

• Industrial control systems requiring robust signal interconnects
• Automotive electronics modules needing high-reliability connections
• General-purpose embedded systems utilizing Datamate Mix-Tek mating headers

Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating thickness and insulation material variants. Ensure compatibility with the intended mating male header from the Datamate J-Tek or Mix-Tek families. Confirm that the vertical orientation matches the mechanical constraints of the target PCB layout before finalizing procurement orders.

Selection Notes

Select this component when a vertical female receptacle with a 2.00mm pitch is required for board-to-board or cable-to-board connections. The 14-position capacity suits moderate-density signal routing. Consider the operating temperature range and current carrying capacity requirements relative to the application environment. Verify that the housing color and locking mechanism align with system assembly standards.

Part Context

This part belongs to the Datamate L-Tek family, which offers high-density interconnect solutions. The L-Tek series is characterized by its small form factor and reliable performance in demanding environments. It complements the broader Datamate ecosystem, allowing mixed configurations of male and female connectors for versatile system integration across various industrial sectors.

Replacement Considerations

M80-6811405 serves as a parameter-equivalent alternative within the same series. Cross-reference pin counts, pitch dimensions, and termination types to ensure mechanical and electrical interchangeability without redesigning the host PCB footprint.
