Product Detailed Parameters
- Description：CONN RCPT 14POS 0.079 GOLD SMD
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：14
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.220" (5.60mm)
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：7.85mm, 8.45mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：120V
Download product information
Overview

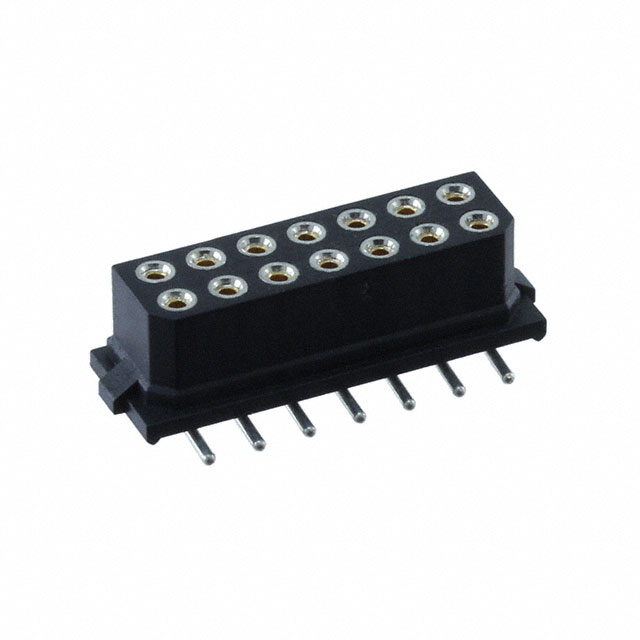

The Harwin M80-6811442 is a Datamate L-Tek series receptacle connector featuring 14 positions arranged in a dual in-line (DIL) configuration. It utilizes a 2 mm (0.079 inch) pitch with two rows of contacts. The component employs gold-plated phosphor bronze sockets and is designed for surface mount termination. The housing is constructed from black polyamide, supporting an operating temperature range from -55°C to +125°C.
Feature Summary
- High-reliability design engineered to withstand vibration, shock, and extreme temperature conditions.
- Secure latching mechanism ensures stable connection integrity in demanding environments.
- Gold-plated contact surfaces provide enhanced corrosion resistance and reliable signal transmission.
Applications
- Automotive electronic systems
- Industrial control equipment
- Military and defense applications
Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to confirm exact plating thickness, housing material variations, and termination style compatibility. Ensure the selected variant matches the required PCB footprint and mating partner specifications before finalizing procurement orders.
Selection Notes
Select this component when a robust, high-density interconnect solution is required for harsh environment applications. The 2mm pitch allows for compact board layouts while maintaining electrical isolation. Verify that the mating header assembly corresponds to the same Datamate L-Tek series for proper mechanical engagement.
Part Context
This part belongs to the Datamate L-Tek family, a line of connectors specifically developed for high reliability in severe conditions. The series offers various configurations including different row counts and termination styles, all sharing a common 2mm pitch standard for interchangeability within the system architecture.
Replacement Considerations
M80-4C11442FC and M80-4D11442FC are related variants within the Datamate ecosystem. Confirm mechanical compatibility and pinout alignment before substitution, as differences in housing material or plating may affect performance in specific environmental conditions.
FAQ
What is the contact material for the M80-6811442?
The contacts are made of phosphor bronze with a gold plating finish.
Does this connector support surface mount installation?
Yes, the M80-6811442 is designed for surface mount termination.
