Product Detailed Parameters
- Description：CONN RCPT 16POS 0.079 GOLD SMD
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：16
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.220" (5.60mm)
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.85mm, 8.45mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：120V
Download product information
Overview

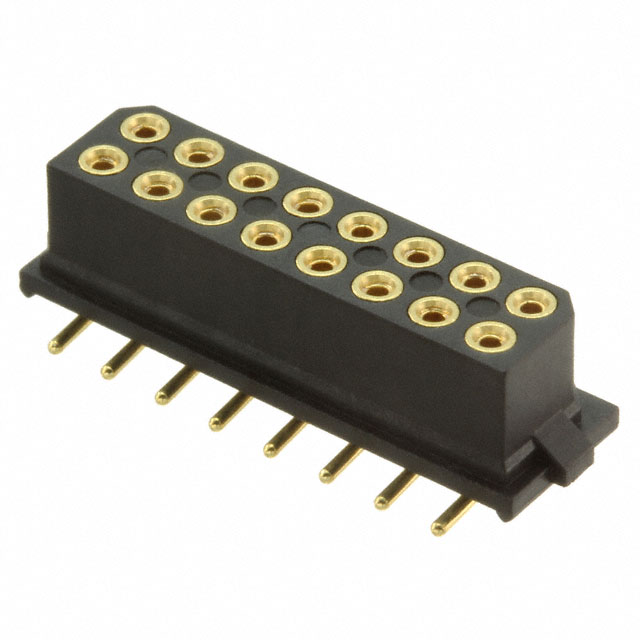

The M80-6811645 is a Datamate L-Tek receptacle connector manufactured by Harwin Inc. It features a 16-position, dual-in-line (DIL) configuration with a 2 mm pitch across two rows. Designed for surface mount (SMD/SMT) installation, it utilizes solder termination and gold-plated female socket contacts. The housing is constructed from black polyamide material. The component operates within a temperature range of -55°C to +125°C.
Feature Summary
- Datamate L-Tek series design ensures high reliability in demanding environments through robust mechanical locking mechanisms.
- Gold-plated female socket contacts provide durable electrical connections resistant to corrosion and wear.
- Surface mount construction facilitates automated PCB assembly processes while maintaining secure board attachment.
Applications
- Industrial control systems requiring vibration resistance
- Automotive electronics applications
- Military and aerospace equipment
Procurement Notes
Verify the specific ordering suffix against the official Harwin datasheet to ensure compatibility with required locking styles or contact plating variations. Confirm that the surface mount footprint matches the target PCB design specifications before finalizing procurement orders to prevent integration errors.
Selection Notes
Select this component when a dual-row, surface-mount female header is required for space-constrained designs. Ensure the mating connector belongs to the compatible Datamate L-Tek male series. Verify that the operating environment temperature falls within the specified -55°C to +125°C range for optimal performance.
Part Context
This part belongs to the Datamate L-Tek family, known for high-reliability interconnects. The L-Tek variant specifically offers latched locking options compared to standard versions. It is designed for applications needing secure connections under shock and vibration conditions, distinguishing it from non-latching connectors in the broader M80 portfolio.
Replacement Considerations
Compatible substitutes include other Harwin Datamate L-Tek receptacles with matching 2 mm pitch and 16 positions, such as M80-6811642, provided the locking mechanism and termination type align with system requirements.
FAQ
What is the locking mechanism for this connector?
The M80-6811645 utilizes a latched locking mechanism characteristic of the Datamate L-Tek series to secure the mating connection.
Is this connector suitable for high-vibration environments?
Yes, the Datamate L-Tek series is engineered to withstand high levels of vibration, shock, and acceleration without compromising connection integrity.
