M80-6812642

Overview

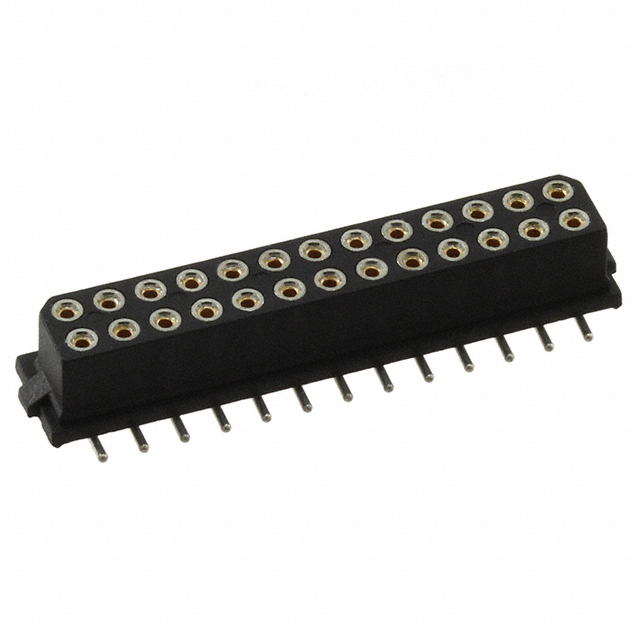

The M80-6812642 is a Datamate L-Tek series header connector manufactured by Harwin Inc. It features a 26-position, dual in-line (DIL) configuration with two rows of male pins. The connector utilizes a 2.00mm pitch and is designed for surface mount technology (SMT) installation on printed circuit boards. Electrical specifications include a rated current of 3A and a voltage rating of 120V. The housing is constructed from black polyphenylene sulfide (PPS) material, providing UL94 V-0 flammability ratings. Contact surfaces are gold-plated phosphor bronze to ensure reliable conductivity.

Feature Summary

• Datamate L-Tek series design with push-pull locking mechanism for secure mating
• Surface mount termination style optimized for automated PCB assembly processes
• Gold-plated contacts on phosphor bronze substrate for enhanced corrosion resistance
• Dual row vertical orientation facilitating high-density board-to-board connections

Applications

• High-density board-to-board interconnects in industrial control systems
• Signal transmission modules requiring robust surface mount reliability
• Compact electronic assemblies utilizing Datamate L-Tek mating counterparts

Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating thickness and housing color variant. Ensure compatibility with the corresponding female receptacle part numbers within the Datamate L-Tek family. Confirm that the surface mount footprint matches the target PCB design guidelines provided in the official datasheet before finalizing procurement orders.

Selection Notes

Select this component when a 26-position SMT header is required for vertical mounting applications. The 2.00mm pitch allows for compact layout designs while maintaining adequate spacing. Consider the 3A current rating and 120V voltage limit to ensure operation within safe electrical boundaries. Verify that the mating connector supports the DIL configuration and compatible locking mechanisms.

Part Context

This component belongs to the Datamate L-Tek product line, which is characterized by its modular design and high-reliability performance. The L-Tek series typically features latched connections suitable for demanding environments. As a header assembly, it serves as the stationary counterpart to mating wire harnesses or flexible flat cables within the broader connector ecosystem.

Replacement Considerations

M80-8512642 is listed as a potential substitute option within the same manufacturer portfolio.
