M80-7002722

Overview

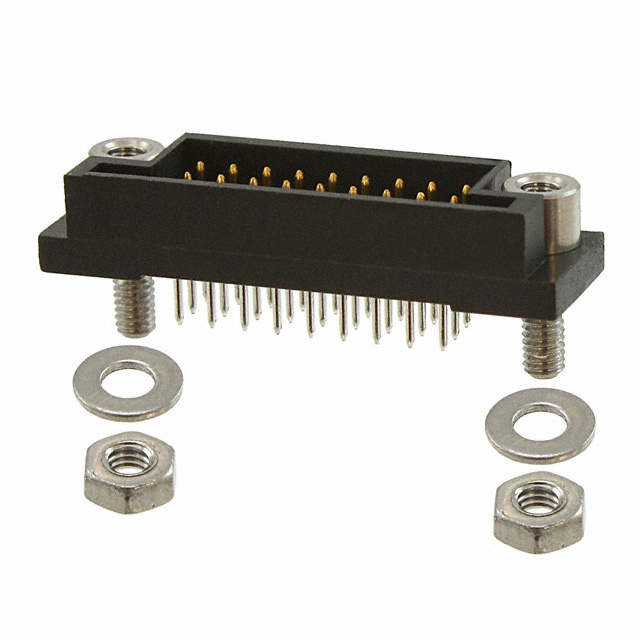

The M80-7002722 is a male pin header connector from the Harwin Datamate J-Tek series. It features a 27-position, 3-row configuration with a 2.00mm pitch. Designed for through-hole vertical mounting, it utilizes phosphor bronze contacts with gold plating and a polyamide housing. The unit supports a rated current of 2.2A and a voltage rating of 120V. Operating temperature ranges from -55°C to +125°C. Key mechanical attributes include board-mount jackscrews for secure mating and a stacking height of 7.3mm.

Feature Summary

• Features a push-pull locking mechanism combined with board-mount jackscrews for secure connection retention.
• Utilizes a robust three-row design with a 2.00mm pitch for high-density signal routing.
• Constructed with phosphor bronze contacts and gold plating to ensure reliable conductivity.

Applications

• Industrial control systems requiring safety-critical interconnects
• Aerospace and space mission equipment
• Military defense electronics
• Medical instrumentation

Procurement Notes

Verify that the specific part number includes board-mount jackscrews, as this variant differs from versions without them. Confirm the contact finish thickness requirements against application standards. Ensure the polyamide insulation material meets the thermal environment specifications. Check compatibility with mating female sockets within the same Datamate J-Tek family.

Selection Notes

Select this component when a high-density, three-row male header is required for vertical PCB mounting. It is suitable for applications demanding a secure locking mechanism via integrated jackscrews. Consider the 2.00mm pitch and 27-position count for circuit density needs. Verify that the 2.2A current rating and 120V voltage rating align with the system's electrical parameters.

Part Context

This connector belongs to the Datamate J-Tek series, designed for harsh environments. The series is known for reliability in mission-critical sectors such as aerospace and medical fields. The M80-7002722 specifically addresses the need for secure, high-pin-count connections with a compact footprint.

Replacement Considerations

Compatible substitutes must match the 27-position, 3-row, 2.00mm pitch specification. Verify that replacement headers also feature board-mount jackscrews and similar contact materials. Ensure the mating socket counterpart is available within the same connector family.

FAQ

Does the M80-7002722 include jackscrews?

Yes, this specific part number includes board-mount jackscrews for securing the connection.

What is the operating temperature range?

The connector operates within a temperature range of -55°C to +125°C.
